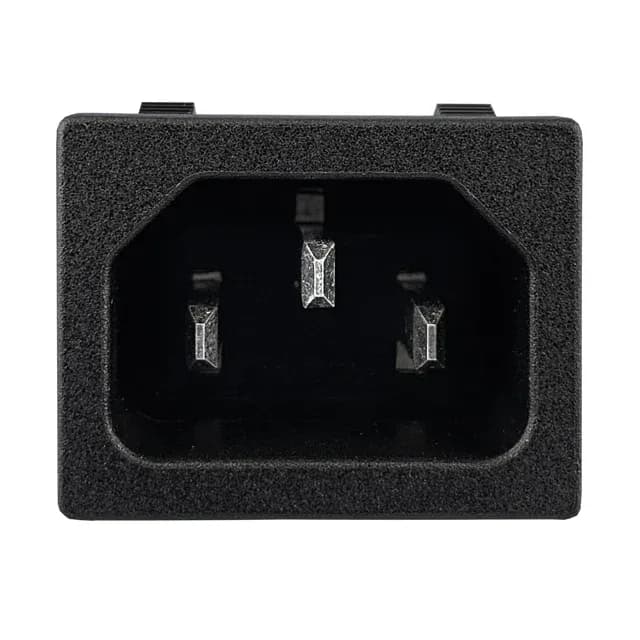

Qualtek 701W series power entry module, order code 701W-X2/03, IEC 320-C14 receptacle, 3 positions, 10 A at 250 VAC, panel mount snap-in, quick connect 0.189" (4.8 mm) termination, unfiltered commercial grade.
| Parameter | Value |
|---|---|
| Series | 701W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 27.00mm x 20.50mm |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.189\" (4.8mm) |
| Panel thickness | 0.031\" ~ 0.079\" (0.79mm ~ 2.00mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 701W-X2/03 is the 3-position IEC 320-C14 receptacle in Qualtek's 701W series, rated 10 A at 250 VAC for unfiltered commercial-duty power entry. Termination is quick connect 0.189" (4.8 mm) tabs; the housing snaps into a rectangular panel cutout 27.00 mm x 20.50 mm, accepting panel thickness 0.031" ~ 0.079" (0.79 mm ~ 2.00 mm).
The 701W-X2/03 is orderable under the listed part number. Availability and pricing are confirmed at RFQ against the BOM quantity.
The 701W-X2/03 is RoHS3 compliant and carries agency approvals from CSA, UL, and VDE.
