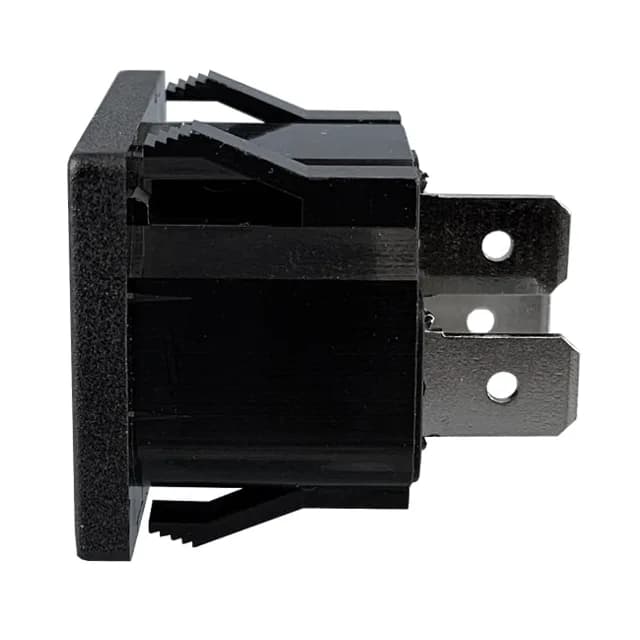

Qualtek 701W-X2/04 — Power Entry Modules

701W-X2/04 IEC 320-C14 Receptacle, 3 Pos, 10A, 250VAC

MPN701W-X2/04
Active

701W series IEC 320-C14 receptacle, order code 701W-X2/04, 3 positions, 10 A at 250 VAC, unfiltered commercial grade, panel mount snap-in, quick-connect 0.250" (6.3mm) termination.

$1.4800Ref. price · indicative, final on quote
Qualtek 701W-X2/04 datasheet (PDF)
RoHSROHS3 Compliant
Series701W
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

701W-X2/04 specifications
ParameterValue
Series701W
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-C14
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutRectangular - 27.00mm x 20.50mm
Approval agencyCSA, UL, VDE
PackageBulk
TerminationQuick Connect - 0.250\" (6.3mm)
Panel thickness0.031\" ~ 0.059\" (0.80mm ~ 1.50mm)
Accomodates a fuseNo
Positions3

Product details

Panel-mount power inlet

The 701W-X2/04 is the 3-position IEC 320-C14 member of the 701W series, a panel-mount snap-in receptacle accepting male blade terminals via quick-connect 0.250" (6.3mm) tabs. Rated 10 A at 250 VAC, unfiltered commercial grade — no fuse accommodation.

Panel cutout and thickness range

The rectangular panel cutout measures 27.00 mm x 20.50 mm; the snap-in retention works on panel thickness from 0.031" to 0.059" (0.80 mm to 1.50 mm).

Approvals and compliance

Approved under CSA, UL, and VDE. ROHS3 compliant per current status.
