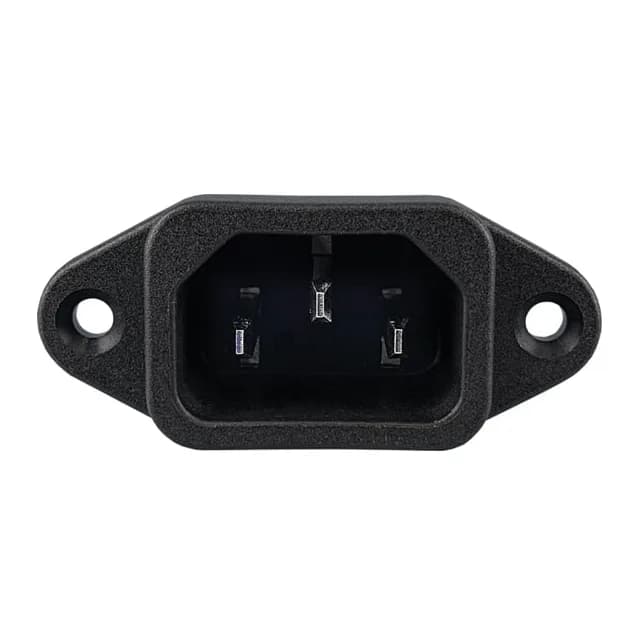

Qualtek 703W series IEC 320-C14 receptacle, order code 703W-00/07, 3 positions, 10 A, 250 VAC, unfiltered commercial grade, panel mount with flange, quick-connect 0.189" (4.8mm) termination, bulk packaging.
| Parameter | Value |
|---|---|
| Series | 703W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Variable Size |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Features | Front or Rear Side Mount |
| Termination | Quick Connect - 0.189\" (4.8mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 703W-00/07 is a 3-position IEC 320-C14 receptacle from Qualtek's 703W series, accepting male blades and mounting to a panel via a flange with front or rear side mount options. Rated 10 A at 250 VAC, the unfiltered commercial-grade inlet terminates via quick-connect tabs sized 0.189" (4.8mm) and carries CSA, UL, and VDE approvals.
The 703W-00/07 is ROHS3 compliant and carries CSA, UL, and VDE approvals.
