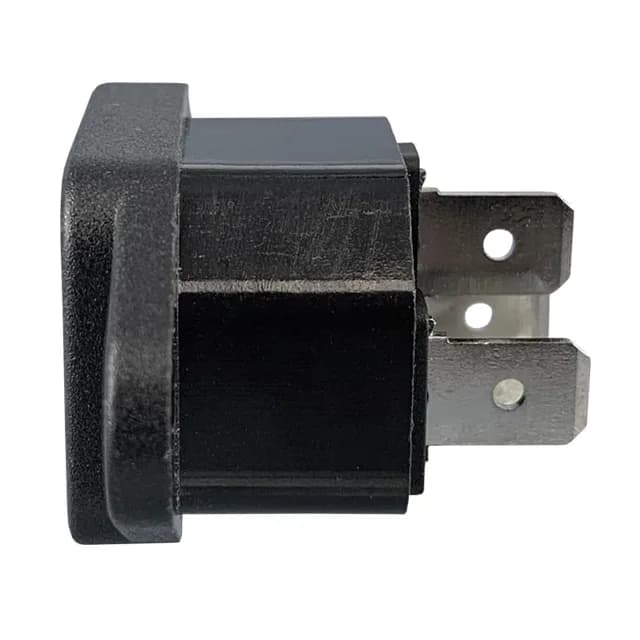

Qualtek 703W series power entry module, order code 703W-00/08, IEC 320-C14 receptacle, male blades, 3 positions, 10 A, 250 VAC, panel mount flange, quick-connect 0.250" (6.3 mm) termination, unfiltered commercial grade, bulk package.
| Parameter | Value |
|---|---|
| Series | 703W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Variable Size |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Features | Front or Rear Side Mount |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 703W-00/08 is a 3-position IEC 320-C14 power entry module from the Qualtek 703W series, designed for panel mounting with a flange and accepting front or rear side mount. Rated 10 A at 250 VAC, the unfiltered commercial-grade inlet terminates via quick-connect tabs sized for 0.250" (6.3 mm) receptacles.
The 703W-00/08 is approved by CSA, UL, and VDE, and is ROHS3 compliant.
