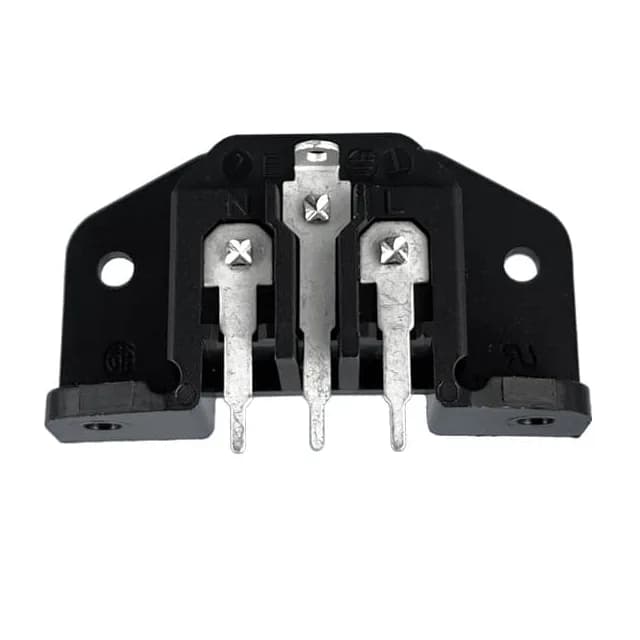

Qualtek 703W series power entry module, order code 703W-00/53, IEC 320-C14 receptacle, male blades, 3 positions, 10 A, 250 VAC, unfiltered commercial, panel mount flange with through-hole right-angle solder termination.
| Parameter | Value |
|---|---|
| Series | 703W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange; Through Hole, Right Angle |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 31.30mm x 23.30mm |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.118\" (3.00mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 703W-00/53 is the 3-position IEC 320-C14 receptacle in Qualtek's 703W series, rated 10 A at 250 VAC for unfiltered commercial power entry. Mounting combines a panel-mount flange with through-hole right-angle solder termination; the panel cutout is rectangular 31.30 mm x 23.30 mm and accepts panel thickness up to 3.00 mm.
The part is ROHS3 compliant and carries approvals from CSA, UL, and VDE.
