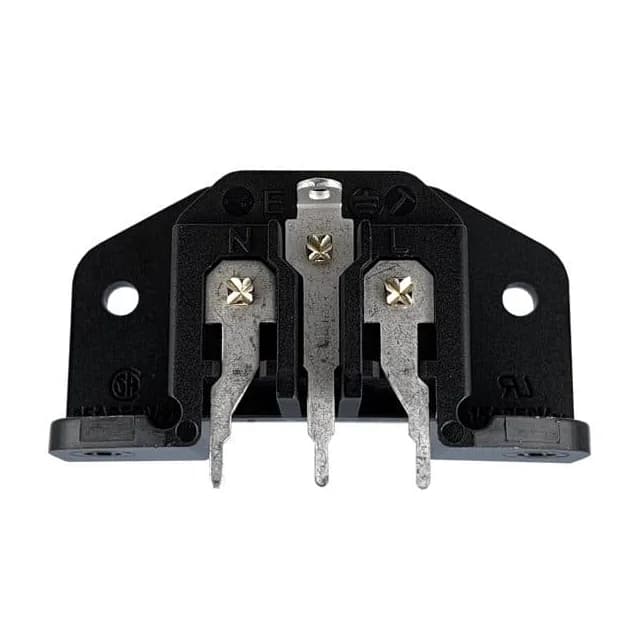

Qualtek 703W series power entry module, order code 703W-00/54, IEC 320-C14 receptacle, 3 positions, male blades, 10 A, 250 VAC, unfiltered commercial, panel mount with flange, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | 703W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange; Through Hole, Right Angle |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 31.10mm x 23.30mm |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.118\" (3.00mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 703W-00/54 is the 3-position IEC 320-C14 member of Qualtek's 703W power entry module line, mounting with a flange through a rectangular panel cutout measuring 31.10 mm x 23.30 mm. The flange accepts a panel thickness of 0.118" (3.00 mm); the through-hole right-angle solder tails orient the module for board-edge placement inside the enclosure.
The module is RoHS3 compliant and carries approvals from CSA, UL, and VDE. Documentation is supplied with the shipment or available on request.
