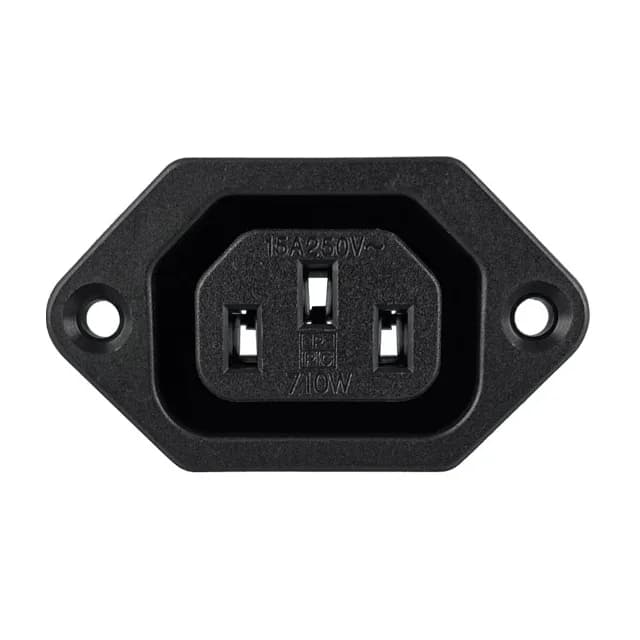

Qualtek 710W series power entry module, order code 710W-00/03, IEC 320-2-2/F receptacle, 3 positions, 10 A, 250 VAC, panel mount flange, quick connect 0.250" (6.3 mm) termination.
| Parameter | Value |
|---|---|
| Series | 710W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 32.50mm x 25.00mm |
| Approval agency | CCC, CSA, TUV, UL |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 710W-00/03 is a 3-position IEC 320-2-2/F power entry module from Qualtek's 710W series, rated 10 A at 250 VAC for appliance inlet duty. Termination is via quick-connect tabs sized 0.250" (6.3 mm); the module mounts to a panel flange with a rectangular cutout of 32.50 mm x 25.00 mm.
Qualtek supplies the 710W-00/03.
The 710W-00/03 is ROHS3 compliant and holds approvals from CCC, CSA, TUV, and UL.
