Qualtek 712-00/00 — Power Entry Modules

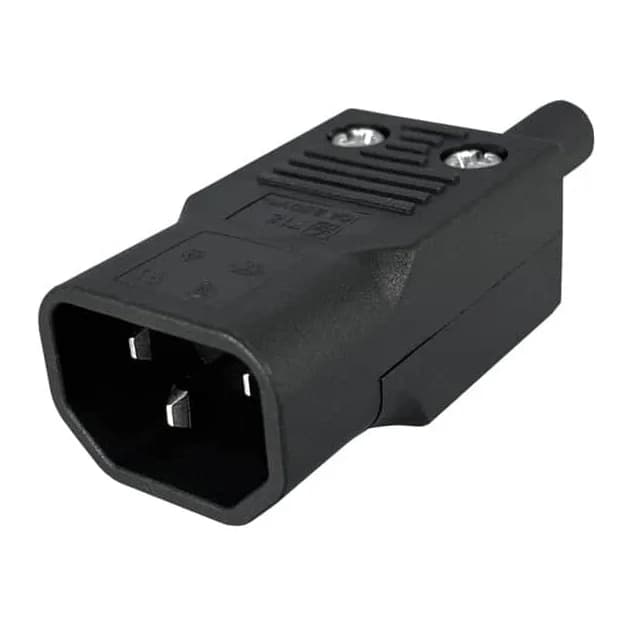

712-00/00 IEC Plug, 3-Pos, 10A, 250VAC, Screw Term

MPN712-00/00
Active

IEC 320-2-2/E plug, order code 712-00/00, 3 positions, male blades, 10 A at 250 VAC, screw termination, free hanging (in-line) mounting, unfiltered commercial grade, bulk package.

$10.1900Ref. price · indicative, final on quote
Qualtek 712-00/00 datasheet (PDF)
RoHSROHS3 Compliant
Series712
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

712-00/00 specifications
ParameterValue
Series712
Filter typeUnfiltered - Commercial
MountingFree Hanging (In-Line)
Connector typeIEC 320-2-2/E
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Material flammability ratingUL94 V-0
Approval agencyCSA, UL, VDE
PackageBulk
TerminationScrew
Accomodates a fuseNo
Positions3

Product details

IEC 320-2-2/E plug, 3-position, screw termination

The 712-00/00 is a 3-position IEC 320-2-2/E plug with male blades, designed for free-hanging in-line installation and terminated via screw connections. Rated 10 A at 250 VAC, the unfiltered commercial-grade inlet carries CSA, UL, and VDE approvals with a UL94 V-0 flammability-rated housing.

Agency approvals and material rating

Approved by CSA, UL, and VDE; the housing material carries a UL94 V-0 flammability rating, supporting use in equipment requiring flame-retardant enclosures.
