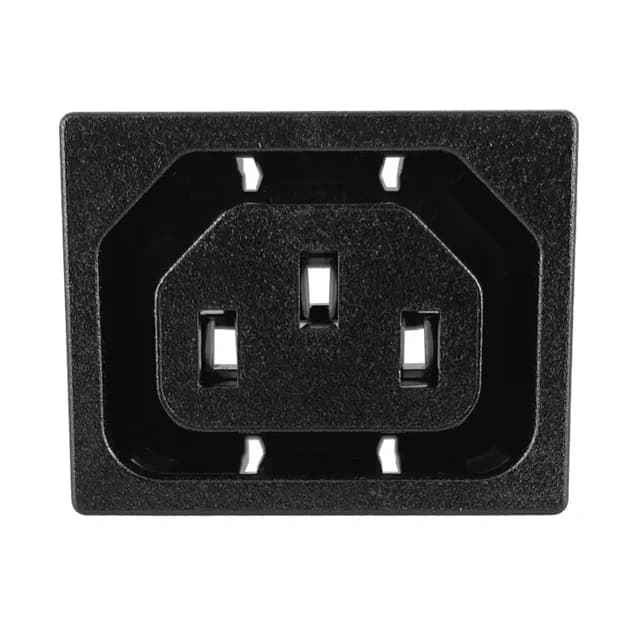

716W series IEC 320-2-2/F receptacle, order code 716W-15/10, 3 positions, 10 A at 250 VAC, unfiltered commercial, quick-connect 0.189" (4.8 mm) termination, panel mount snap-in, bulk packaging.
| Parameter | Value |
|---|---|
| Series | 716W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 32.60mm x 25.30mm |
| Approval agency | CCC, CSA, TUV, UL |
| Package | Bulk |
| Termination | Quick Connect - 0.189\" (4.8mm) |
| Panel thickness | 0.059\" (1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 716W-15/10 is a 3-position IEC 320-2-2/F receptacle in the 716W series, rated 10 A at 250 VAC for unfiltered commercial power entry. Termination is quick-connect 0.189" (4.8 mm) tabs; the housing snaps into a rectangular panel cutout 32.60 mm x 25.30 mm and accepts panel thickness 0.059" (1.50 mm).
The part is ROHS3 compliant and holds approvals from CCC, CSA, TUV, and UL. These certifications are on file and cover the inlet for commercial equipment applications.
