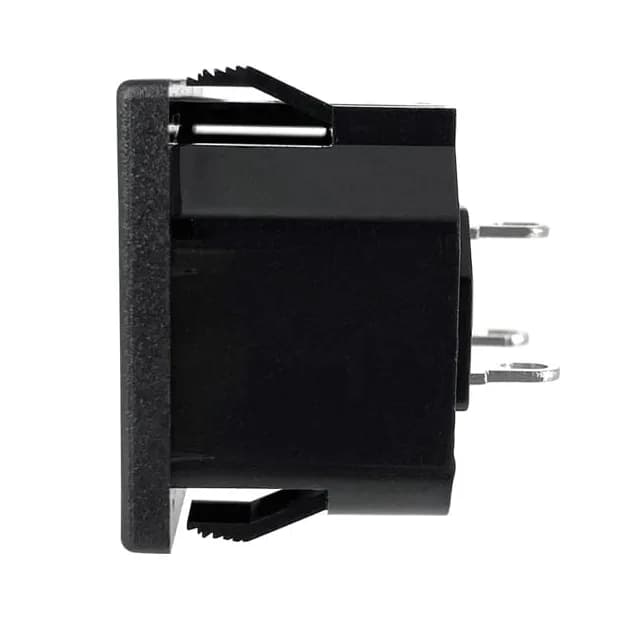

Qualtek 716W series power entry module, order code 716W-X2/01, IEC 320-2-2/F receptacle, 3 positions, 10 A at 250 VAC, unfiltered commercial grade, panel mount snap-in, solder eyelet termination.
| Parameter | Value |
|---|---|
| Series | 716W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 32.60mm x 25.30mm |
| Approval agency | CSA, TUV, UL |
| Package | Bulk |
| Termination | Solder Eyelet |
| Panel thickness | 0.031\" ~ 0.059\" (0.79mm ~ 1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 716W-X2/01 is the 3-position IEC 320-2-2/F member of Qualtek's 716W power entry module line. Rated 10 A at 250 VAC with solder eyelet termination and panel mount snap-in installation.
Carries CSA, TUV, and UL approvals.
Accepts panel thickness from 0.031" to 0.059" (0.79 mm to 1.50 mm). The rectangular cutout measures 32.60 mm x 25.30 mm.
Orderable under the listed part number.
ROHS3 compliant. Approved by CSA, TUV, and UL.
The 716W series from Qualtek.
