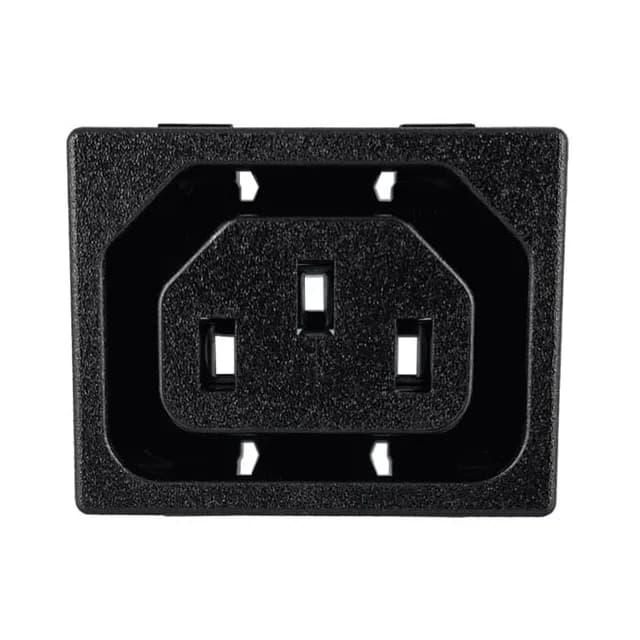

Qualtek 716W series power entry module, order code 716W-X2/03, IEC 320-2-2/F receptacle, 3 positions, 10 A rated, 250 VAC, panel mount snap-in, quick-connect 0.250" (6.3mm) termination, unfiltered commercial grade.
| Parameter | Value |
|---|---|
| Series | 716W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 32.60mm x 25.30mm |
| Approval agency | CCC, CSA, NEMKO, TUV, UL |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.031\" ~ 0.059\" (0.79mm ~ 1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 716W-X2/03 is a 3-position IEC 320-2-2/F receptacle from Qualtek's 716W series, rated 10 A at 250 VAC. It mounts via snap-in into a rectangular panel cutout 32.60 mm x 25.30 mm and accepts panel thickness 0.031" to 0.059" (0.79 mm to 1.50 mm). Termination is quick-connect 0.250" (6.3 mm) tabs.
The part is ROHS3 compliant and holds approvals from CCC, CSA, NEMKO, TUV, and UL. Documentation is available per the manufacturer's standard offering for active products.
