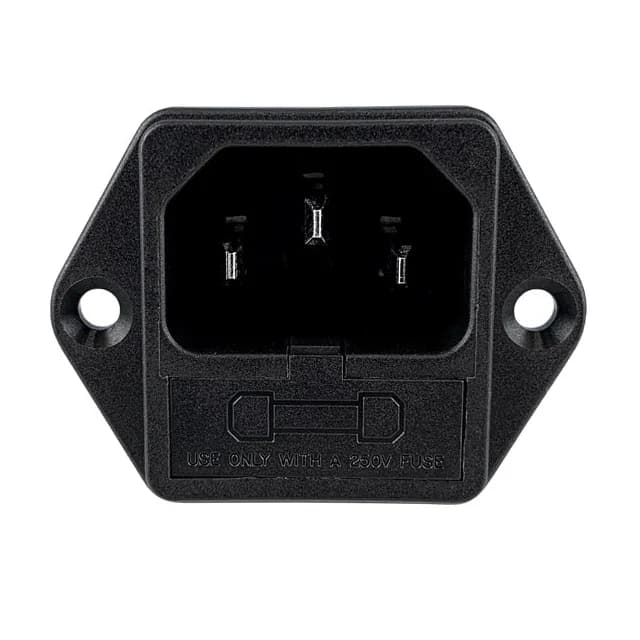

Qualtek 719W series power entry module, order code 719W-00/04, IEC 320-C14 receptacle, male blades, 3 positions, 10 A, 250 VAC, panel mount flange, quick connect 0.250" (6.3 mm) termination, unfiltered, twin fuse holder.
| Parameter | Value |
|---|---|
| Series | 719W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 27.30mm x 31.40mm |
| Approval agency | CSA, TUV, UL |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder, Twin Fused |
| Positions | 3 |
The 719W-00/04 is a 3-position IEC 320-C14 power entry module from Qualtek's 719W series, accepting a male blade plug and housing a twin fuse drawer. Rated 10 A at 250 VAC, it mounts to a panel flange and terminates via 0.250" (6.3 mm) quick-connect tabs. The unfiltered commercial-grade module accommodates a fuse (not included) for overcurrent protection at the inlet.
The module is ROHS3 compliant and carries approvals from CSA, TUV, and UL.
