Qualtek 723W-X2/02 — Power Entry Modules

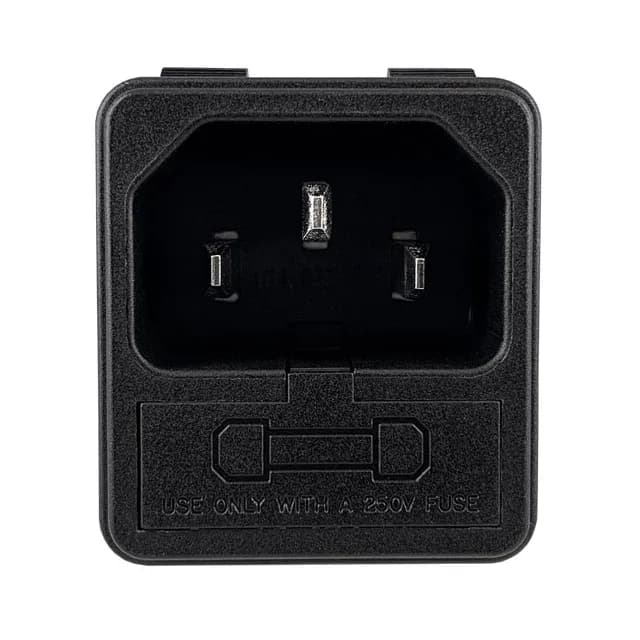

Qualtek 723W-X2/02 IEC 320-C14 Power Entry Module

MPN723W-X2/02
Active

Qualtek 723W series power entry module, order code 723W-X2/02, IEC 320-C14 receptacle, 3 positions, 10 A at 250 VAC, unfiltered commercial, panel mount snap-in, quick connect 0.110" (2.8mm) termination, twin fused holder.

$2.4700Ref. price · indicative, final on quote
Qualtek 723W-X2/02 datasheet (PDF)
RoHSROHS3 Compliant
Series723W
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

723W-X2/02 specifications
ParameterValue
Series723W
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-C14
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutVariable Size
Approval agencyCSA, TUV, UL
PackageBulk
TerminationQuick Connect - 0.110\" (2.8mm)
Panel thickness0.031\" ~ 0.079\" (0.79mm ~ 2.00mm)
Accomodates a fuseYes (Fuse Not Included)
Fuse holder, drawerFuse Holder, Twin Fused
Positions3

Product details

IEC 320-C14 panel inlet with twin fuse drawer

The 723W-X2/02 is a 3-position IEC 320-C14 receptacle module from Qualtek's 723W series, rated 10 A at 250 VAC for unfiltered commercial power entry. Termination is quick connect 0.110" (2.8mm) tabs; the module snaps into a panel cutout and accommodates a twin fuse holder (fuses not included).

Panel fit and fuse accommodation

Panel thickness range is 0.031" ~ 0.079" (0.79mm ~ 2.00mm); the snap-in mount secures without hardware. The twin fused holder accepts two fuses (not supplied) for line and neutral protection.

Frequently asked questions

What compliance documentation does Qualtek provide for the 723W-X2/02?

The module is ROHS3 compliant and carries approvals from CSA, TUV, and UL.
