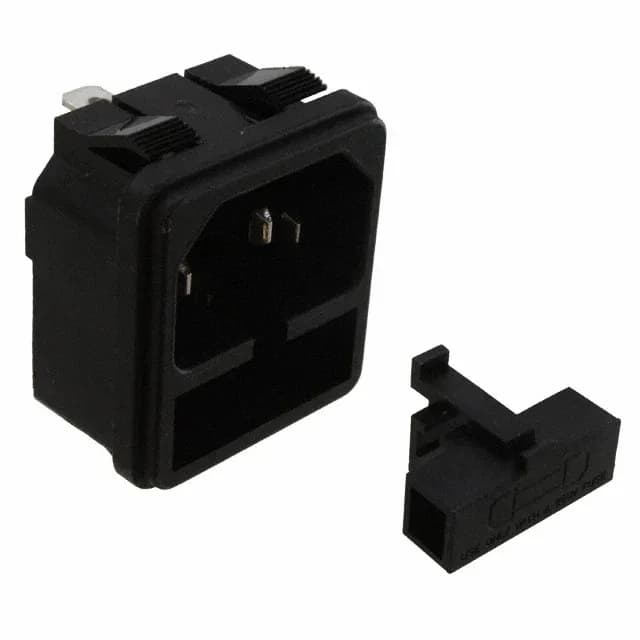

723W-X2/03 IEC 320-C14 receptacle, male blades, 3 positions, 10 A at 250 VAC, unfiltered commercial grade, quick-connect 0.189" (4.8 mm) termination, panel mount snap-in, bulk package.
| Parameter | Value |
|---|---|
| Series | 723W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Variable Size |
| Approval agency | CSA, TUV, UL |
| Package | Bulk |
| Termination | Quick Connect - 0.189\" (4.8mm) |
| Panel thickness | 0.031\" ~ 0.079\" (0.79mm ~ 2.00mm) |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder, Twin Fused |
| Positions | 3 |
The 723W-X2/03 is a 3-position IEC 320-C14 receptacle module from the 723W series, accepting male blades and accommodating a twin fused fuse holder (fuse not included). Rated 10 A at 250 VAC, it terminates via quick-connect 0.189" (4.8 mm) tabs and mounts with a snap-in panel fit for 0.031" ~ 0.079" (0.79 mm ~ 2.00 mm) panel thickness.
The panel cutout dimensions are variable size; the panel thickness range is 0.031" ~ 0.079" (0.79 mm ~ 2.00 mm).
The receptacle accommodates a fuse but a fuse is not included. The module includes a twin fused fuse holder.
