Qualtek 742W-15/04 — Power Entry Modules

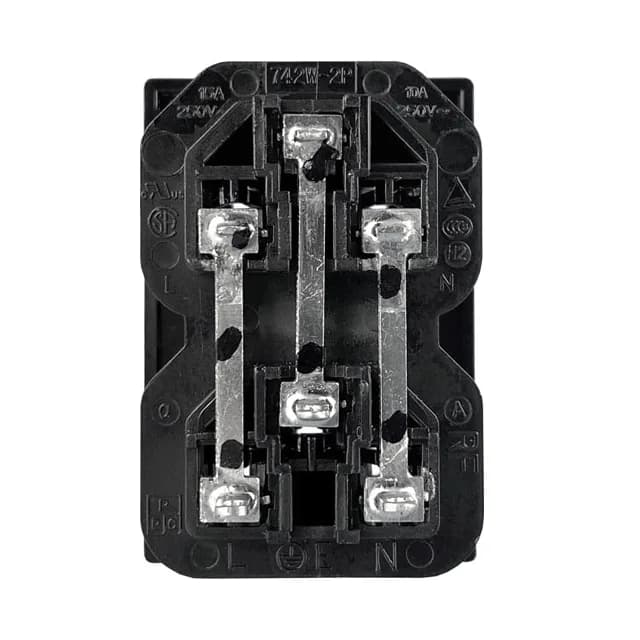

Qualtek 742W-15/04 IEC 320-2-2/F Power Entry Module

MPN742W-15/04
Active

Qualtek 742W series power entry module, order code 742W-15/04, IEC 320-2-2/F receptacle, female sockets, 3 positions per connection (2), 10 A, 250 VAC, unfiltered commercial, panel mount snap-in, quick connect 0.110" (2.8mm) termination, Bulk package.

$3.8100Ref. price · indicative, final on quote
Qualtek 742W-15/04 datasheet (PDF)
RoHSROHS3 Compliant
Series742W
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

742W-15/04 specifications
ParameterValue
Series742W
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-2-2/F
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutRectangular - 32.50mm x 48.30mm
Approval agencyCSA, TUV, UL
PackageBulk
TerminationQuick Connect - 0.110\" (2.8mm)
Panel thickness0.059\" (1.50mm)
Accomodates a fuseNo
Positions3 per connection (2)

Product details

Panel-mount IEC inlet, unfiltered

The 742W-15/04 is a Qualtek 742W series IEC 320-2-2/F power entry receptacle with female sockets, designed for panel-mount snap-in installation. Rated 10 A at 250 VAC, it terminates via quick-connect 0.110" (2.8mm) tabs and accepts panel thickness up to 0.059" (1.50mm) with a rectangular cutout of 32.50 mm x 48.30 mm.

Approvals include CSA, TUV, and UL — the unfiltered commercial-grade inlet suits equipment requiring a basic IEC power entry without integrated EMI filtering.

Frequently asked questions

What compliance documentation does Qualtek provide for the 742W-15/04?

The 742W-15/04 is ROHS3 compliant and carries approvals from CSA, TUV, and UL.
