Qualtek 742W-15/20 — Power Entry Modules

Qualtek 742W-15/20 IEC 320-2-2/F Power Entry Module

MPN742W-15/20
Active

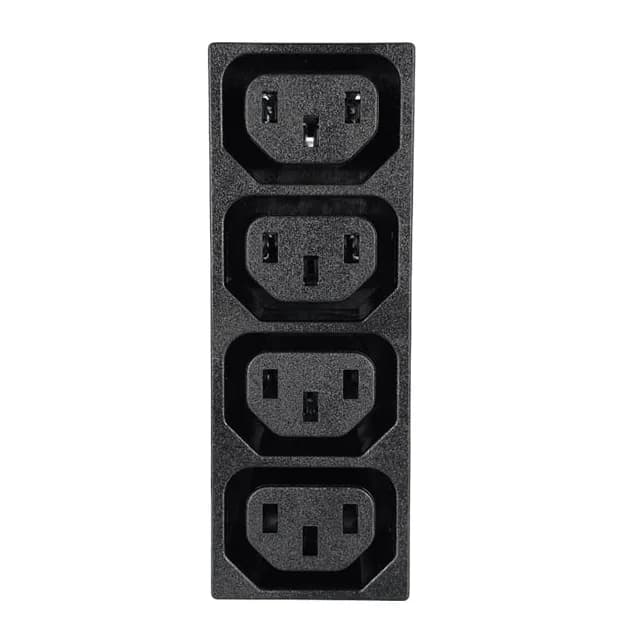

Qualtek 742W series IEC 320-2-2/F power entry module, order code 742W-15/20, receptacle with female sockets, 3 positions per connection (4), 10 A, 250 VAC, unfiltered commercial, quick-connect 0.110" (2.8mm) termination, panel mount snap-in, Bulk package.

$5.8400Ref. price · indicative, final on quote
Qualtek 742W-15/20 datasheet (PDF)
RoHSROHS3 Compliant
Series742W
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

742W-15/20 specifications
ParameterValue
Series742W
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-2-2/F
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutRectangular - 32.50mm x 95.50mm
Approval agencyCSA, TUV, UL
PackageBulk
TerminationQuick Connect - 0.110\" (2.8mm)
Panel thickness0.059\" (1.50mm)
Accomodates a fuseNo
Positions3 per connection (4)

Product details

IEC 320-2-2/F panel-mount inlet

The 742W-15/20 is the unfiltered commercial-grade member of Qualtek's 742W series of IEC 320-2-2/F power entry modules, accepting a female socket with 3 positions per connection (4 total). Rated 10 A at 250 VAC, it terminates via quick-connect tabs sized 0.110" (2.8mm) and mounts to the panel through a snap-in rectangular cutout measuring 32.50 mm x 95.50 mm.

The 742W-15/20 carries an Active product status with ROHS3 compliance. The base product number is 742W-15.

Frequently asked questions

Where can I buy the 742W-15/20 and get a price?

The 742W-15/20 is orderable in Bulk packaging. Request a quote or check stock through the distributor's RFQ and availability tools.

What compliance documentation does Qualtek provide for the 742W-15/20?

The 742W-15/20 is ROHS3 compliant and carries CSA, TUV, and UL approvals.
