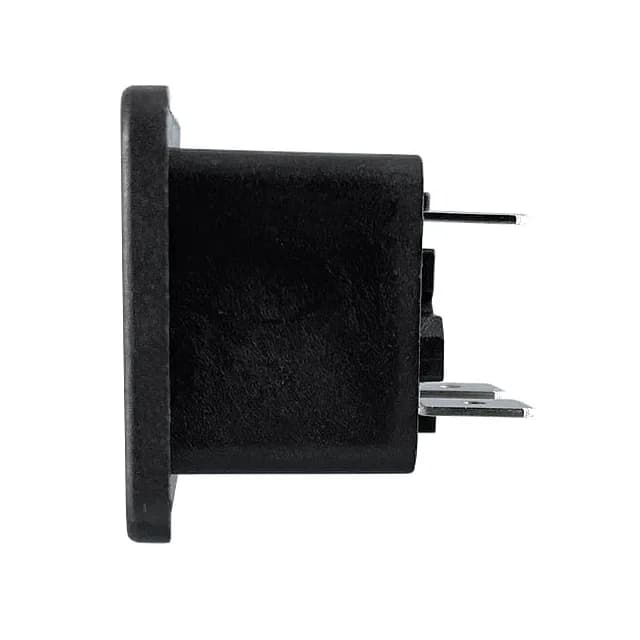

Qualtek 744W series IEC 320-C20 power entry module, order code 744W-00/01, 3 positions, 16 A at 250 VAC, unfiltered commercial, solder eyelet termination, panel mount flange.
| Parameter | Value |
|---|---|
| Series | 744W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C20 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 16A |
| Panel cutout | Rectangular - 32.00mm x 24.00mm |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Termination | Solder Eyelet |
| Accomodates a fuse | No |
| Positions | 3 |
The 744W-00/01 is a 3-position IEC 320-C20 receptacle from Qualtek's 744W series, rated 16 A at 250 VAC for unfiltered commercial power entry. Termination is solder eyelet; mounting is panel mount with flange, requiring a rectangular cutout of 32.00 mm x 24.00 mm.
The 744W-00/01 is ROHS3 compliant and carries agency approvals from CSA, UL, and VDE.
