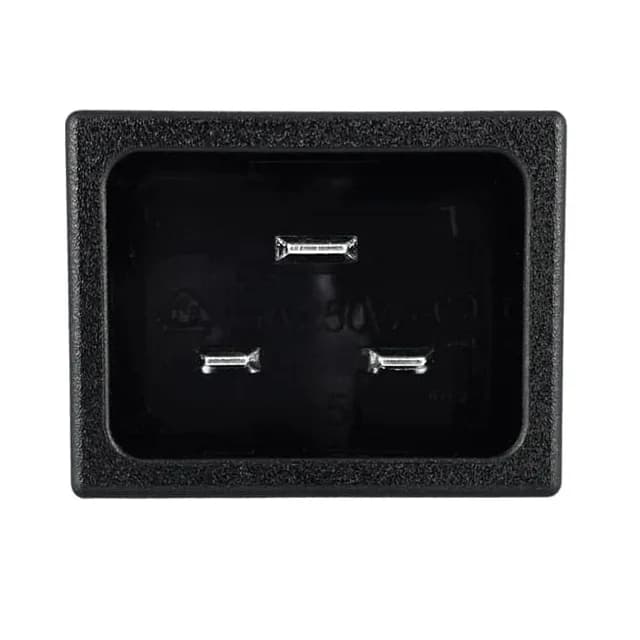

Qualtek 745W series power entry module, order code 745W-15/07, IEC 320-C20 receptacle, male blades, 3 positions, 16A at 250VAC, unfiltered commercial, panel mount snap-in, quick connect 0.189" (4.8mm) termination.
| Parameter | Value |
|---|---|
| Series | 745W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C20 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 16A |
| Panel cutout | Rectangular - 32.60mm x 24.60mm |
| Approval agency | CCC, CSA, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.189\" (4.8mm) |
| Panel thickness | 0.059\" (1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 745W-15/07 is the 3-position IEC 320-C20 member of Qualtek's 745W power entry module line, rated 16A at 250VAC for commercial unfiltered applications. Termination is quick connect 0.189" (4.8mm) tabs, and the housing mounts via snap-in into a rectangular panel cutout 32.60mm x 24.60mm with a minimum panel thickness of 0.059" (1.50mm).
The 745W-15/07 is orderable under the listed part number. Request a quote for current pricing and availability — stock is confirmed at RFQ.
Qualtek provides ROHS3 compliance certification and safety agency approvals including CCC, CSA, UL, and VDE for the 745W-15/07.
