Qualtek 761-18/003 — Power Entry Modules

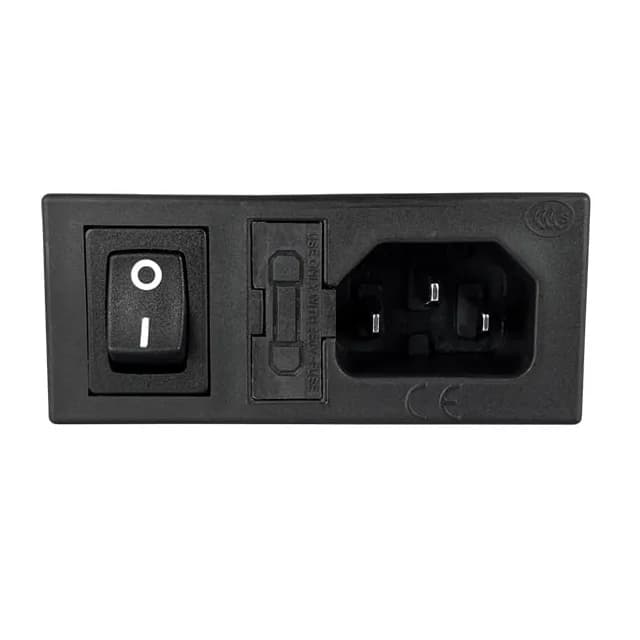

Qualtek 761-18/003 Power Entry Module, IEC 320-C14, 3-Pos

MPN761-18/003
Active

Qualtek 761 series power entry module, order code 761-18/003, IEC 320-C14 receptacle, 3 positions, unfiltered commercial, panel mount snap-in, quick connect 0.157" (3.9mm) termination, switch on-off, fuse holder.

$8.9700Ref. price · indicative, final on quote
Qualtek 761-18/003 datasheet (PDF)
RoHSROHS3 Compliant
Series761
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

761-18/003 specifications
ParameterValue
Series761
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-C14
Panel cutoutRectangular - 66.04mm x 27.00mm
Approval agencyCSA, SEMKO, UL
PackageBulk
TerminationQuick Connect - 0.157\" (3.9mm)
Panel thickness0.040\" ~ 0.070\" (1.02mm ~ 1.78mm)
Switch featuresSwitch On-Off
Accomodates a fuseYes (Fuse Not Included)
Fuse holder, drawerFuse Holder
Positions3

Product details

IEC 320-C14 panel-mount module with switch and fuse

The 761-18/003 is the 3-position IEC 320-C14 member of Qualtek's 761 series power entry module line, combining a receptacle, switch on-off, and fuse holder in a single panel-mount snap-in unit. Rated for commercial unfiltered applications, it terminates via quick connect 0.157" (3.9mm) tabs and carries CSA, SEMKO, and UL approvals.

Switch, fuse holder, and panel fit

The module integrates a switch on-off and a fuse holder (fuse not included), accommodating a fuse for overcurrent protection. Panel cutout is rectangular 66.04mm x 27.00mm, accepting panel thickness from 0.040" to 0.070" (1.02mm to 1.78mm).

Frequently asked questions

What compliance documentation does Qualtek provide for 761-18/003?

The 761-18/003 is ROHS3 compliant and carries CSA, SEMKO, and UL approvals.

Does the 761-18/003 include a fuse?

The module accommodates a fuse (fuse not included) and includes a fuse holder.
