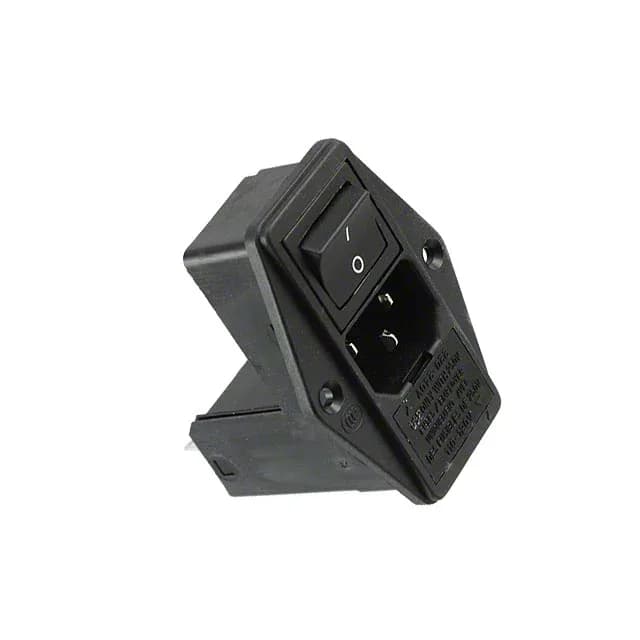

Qualtek 763 series power entry module, order code 763-00/001, IEC 320-C14 receptacle, male blades, 3 positions, panel mount flange, solder tabs, unfiltered commercial, switch on-off, voltage selector, twin fuse holder.
| Parameter | Value |
|---|---|
| Series | 763 |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Panel cutout | Rectangular - 27.50mm x 59.00mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, SEMKO, UL |
| Package | Bulk |
| Features | Voltage Selector |
| Termination | Solder Tabs |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder, Twin Fused |
| Positions | 3 |
The 763-00/001 is a 3-position IEC 320-C14 power entry module from Qualtek's 763 series, combining a panel-mount receptacle with a voltage selector switch and a twin fuse holder in a single flange-mount package. The unfiltered commercial module accepts solder tab termination and fits a rectangular panel cutout of 27.50 mm x 59.00 mm; the housing carries a UL94 V-0 flammability rating.
The module is ROHS3 compliant and holds approvals from CSA, SEMKO, and UL.
