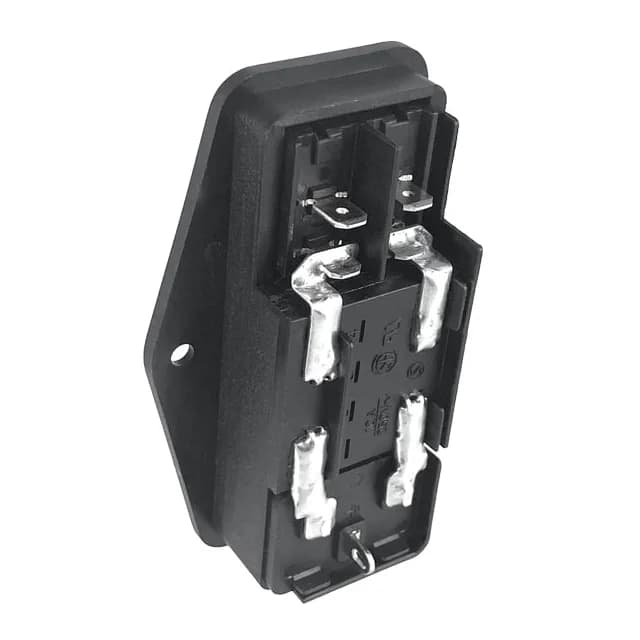

Qualtek 764 series power entry module, order code 764-00/002, IEC 320-C14 receptacle, 3 positions, unfiltered commercial, panel mount flange, solder eyelet termination, switch on-off, twin fuse holder.
| Parameter | Value |
|---|---|
| Series | 764 |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Panel cutout | Rectangular - 28.00mm x 72.40mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, SEMKO, UL |
| Package | Bulk |
| Termination | Solder Eyelet |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder, Twin Fused |
| Positions | 3 |
The 764-00/002 is the 3-position IEC 320-C14 member of Qualtek's 764 power entry module series, integrating a switch on-off and a twin fuse holder in a single panel-mount flange assembly. The unfiltered commercial module terminates via solder eyelet and accepts a rectangular panel cutout of 28.00 mm x 72.40 mm, with a UL94 V-0 rated housing.
