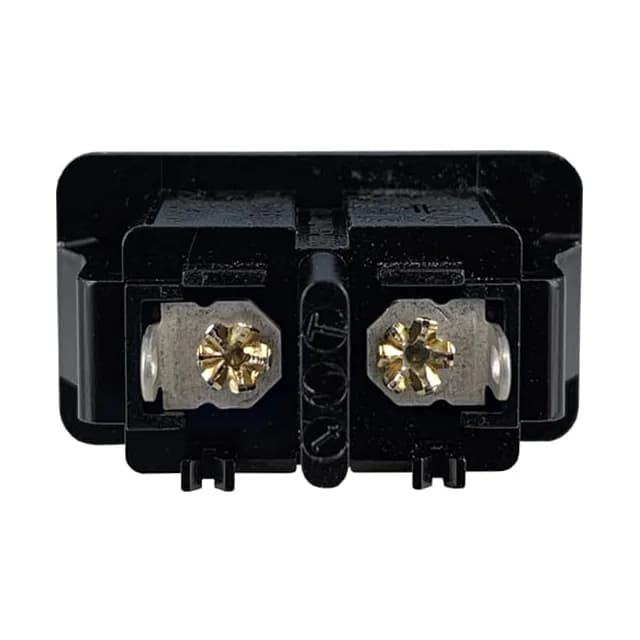

Qualtek 770W series power entry module, order code 770W-X2/13, IEC 320-C8 receptacle, 2 positions, 2.5 A at 250 VAC, unfiltered - commercial, panel mount snap-in, solder eyelet termination.
| Parameter | Value |
|---|---|
| Series | 770W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C8 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 2.5A |
| Panel cutout | Rectangular - 24.50mm x 12.50mm |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Termination | Solder Eyelet |
| Panel thickness | 0.024\" ~ 0.079\" (0.60mm ~ 2.00mm) |
| Accomodates a fuse | No |
| Positions | 2 |
The 770W-X2/13 is the 2-position IEC 320-C8 receptacle in Qualtek's 770W series of power entry modules. Rated 2.5 A at 250 VAC, unfiltered, the inlet carries the current limit of the C8 connector interface rather than the contact itself.
The inlet carries CSA, UL, and VDE approvals and is ROHS3 compliant.
