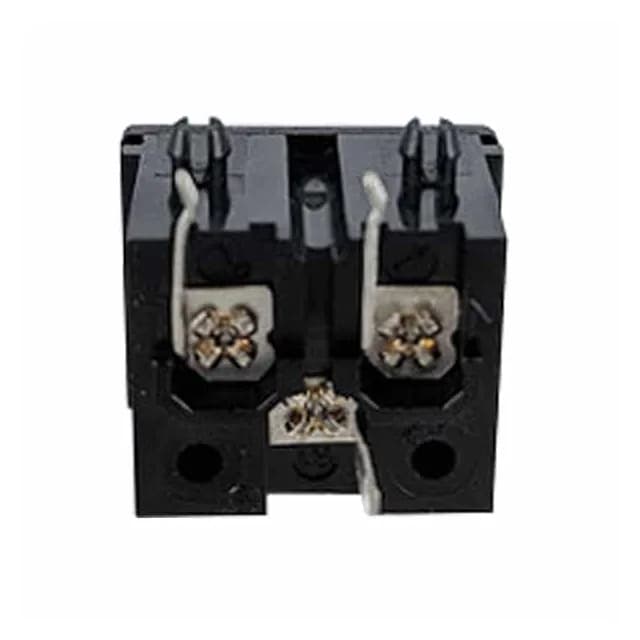

Qualtek 771W series IEC 320-C6 receptacle, order code 771W-BX2/01, 3 positions, 2.5 A at 250 VAC, unfiltered commercial, panel mount snap-in with through-hole right-angle solder termination.
| Parameter | Value |
|---|---|
| Series | 771W |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In; Through Hole, Right Angle |
| Connector type | IEC 320-C6 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 2.5A |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.024\" ~ 0.059\" (0.60mm ~ 1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 771W-BX2/01 is a 3-position IEC 320-C6 receptacle in Qualtek's 771W series, accepting a standard C5 cordset. Rated 2.5 A at 250 VAC, unfiltered commercial type, with panel mount snap-in and through-hole right-angle solder termination.
ROHS3 compliant. Approved by CSA, UL, and VDE.
