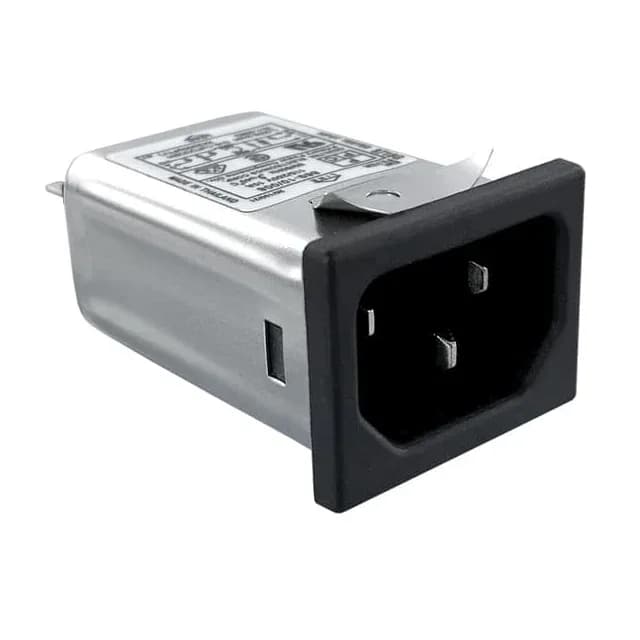

Qualtek 869 series filtered power entry module, order code 869-10/008, IEC 320-C14 receptacle, male blades, 3 positions, 10 A, 115/250 VAC, panel mount snap-in, quick connect termination.
| Parameter | Value |
|---|---|
| Series | 869 |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 115/250VAC |
| Current rating - filter | 10A |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 28.45mm x 21.89mm |
| Approval agency | CSA, UL, VDE |
| Package | Tray |
| Termination | Quick Connect |
| Panel thickness | 0.040\" ~ 0.063\" (1.02mm ~ 1.60mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 869-10/008 is the 3-position member of Qualtek's 869 series of filtered power entry modules, accepting an IEC 320-C14 plug. Rated 10 A at 115/250 VAC with an integrated EMI/RFI filter for commercial equipment, it mounts via panel snap-in and terminates with quick-connect tabs.
