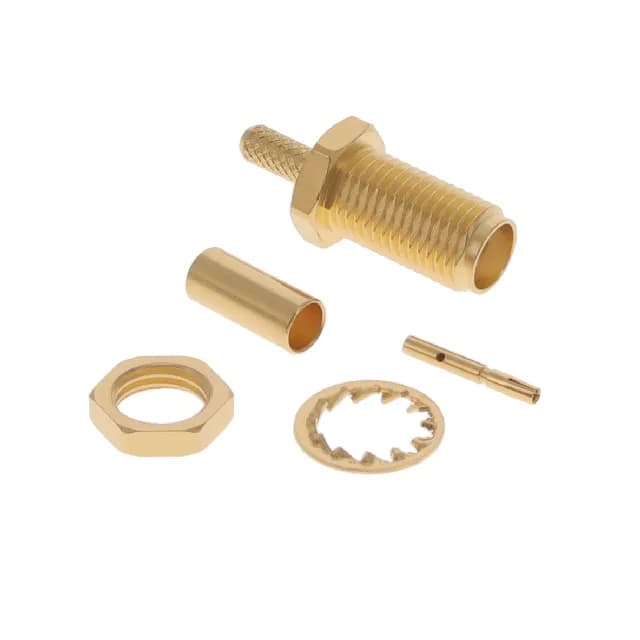

Radiall USA, Inc. R124312123
MPNR124312123
Active
$14.0900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Frequency - max | 12.4 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-174, 316, AEP-100FR |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 100 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
