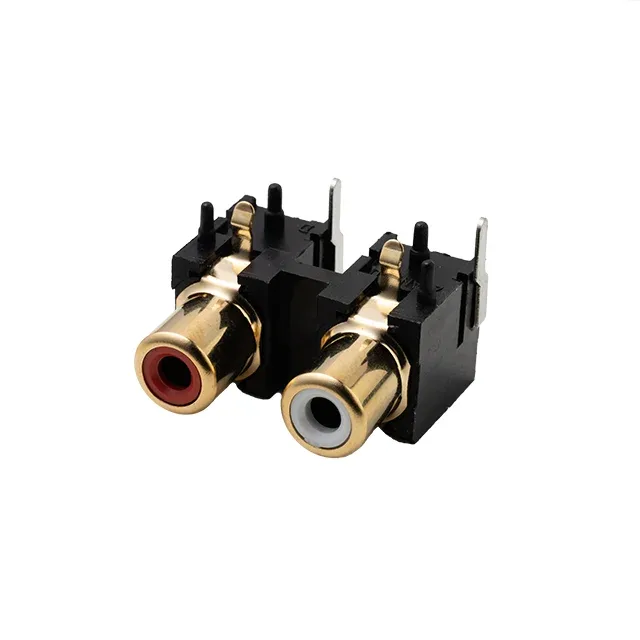

RCA JACK
$1.48Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack, Dual |
| Voltage - rated | 12VDC |
| Operating temperature | -40°C ~ 70°C |
| Body color | Gold |
| Body material | Brass |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation color | Red, White |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.126\" (3.20mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Sets of 2 Conductors, 6 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
Sourcing this connector
RDI, Inc. RH103901002GNL is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against RDI, Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
