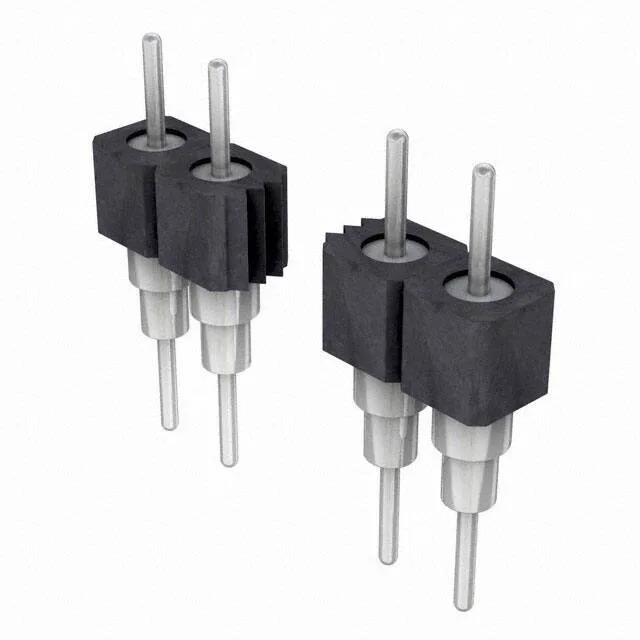

Samtec Inc. BBS-132-T-A
MPNBBS-132-T-A
Active
CONN HEADER VERT 32POS 2.54MM
$7.49Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBBS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BBS |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Insulation color | Black |
| Insulation height | 0.211\" (5.35mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Contact finish - post | Nickel |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.460\" (11.68mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 50.0µin (1.27µm) |
