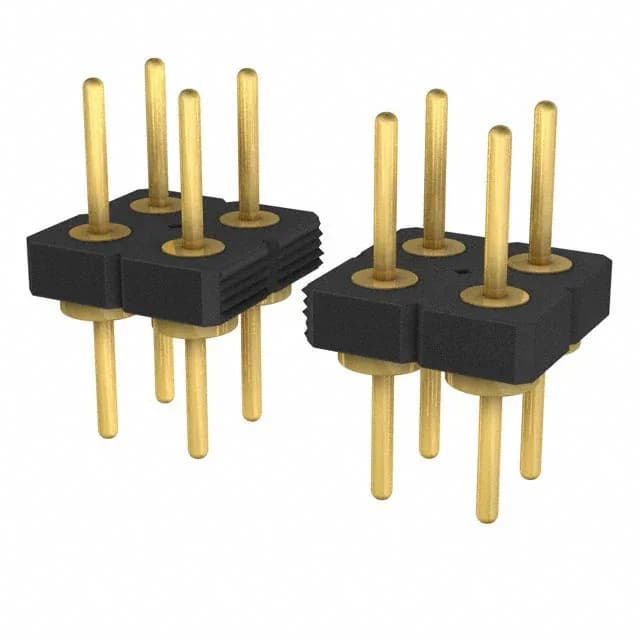

Samtec Inc. BDL-105-G-F
MPNBDL-105-G-F
Active
CONN HEADER VERT 10POS 2.54MM
$6.5900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBDL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BDL |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Insulation color | Black |
| Insulation height | 0.085\" (2.15mm) |
| Insulation material | Polyamide (PA), Nylon |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.332\" (8.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.122\" (3.10mm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
