Samtec Inc. BNC7T-J-P-GN-ST-EM2 — RF / Coaxial Connectors

Samtec BNC7T-J-P-GN-ST-EM2, TRUE75 BNC Jack, 75 Ohm, 12 GHz

MPNBNC7T-J-P-GN-ST-EM2
Active

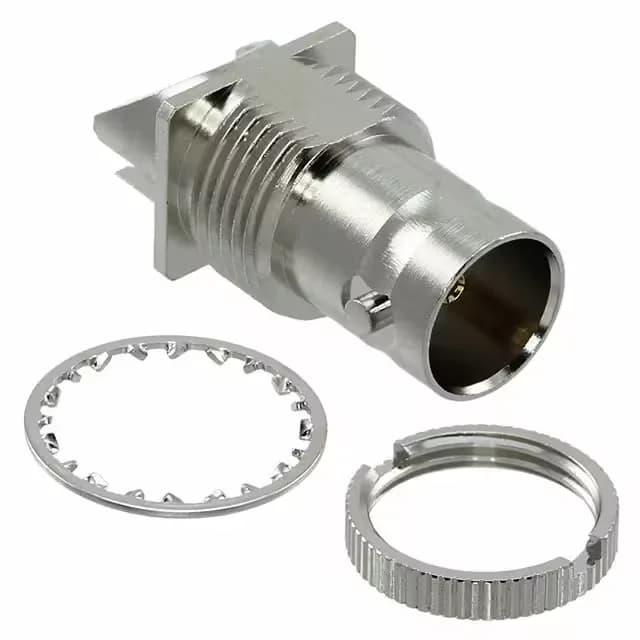

Samtec TRUE75™ BNC7T series, BNC jack female socket, 75 Ohm, 12 GHz, 500 V, bulkhead/board-edge mount, solder termination, gold center contact, bulk pack with lockwasher and nut.

$11.5300Ref. price · indicative, final on quote
Samtec Inc. BNC7T-J-P-GN-ST-EM2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

BNC7T-J-P-GN-ST-EM2 key specifications
ParameterValue
SeriesTRUE75™ BNC7T
MountingBoard Edge, End Launch; Panel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max12 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~125°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialCopper Alloy

All specifications

BNC7T-J-P-GN-ST-EM2 additional specifications
ParameterValue
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm BNC for 12 GHz Video and Instrumentation

The BNC7T-J-P-GN-ST-EM2: The female socket center contact is gold-plated copper alloy, mated to a PTFE dielectric. The brass body gets a nickel finish — standard for corrosion resistance in outdoor broadcast trucks and head-end racks.

Mounting and Termination — Two Install Options

The kit includes the lockwasher and nut — three pieces total, no separate hardware order. Shield termination is solder, same as the center contact, so you're soldering both the signal and the ground shell to the board or cable braid.

What the 75 Ohm / 12 GHz Rating Means on the Bench

The 12 GHz bandwidth and PTFE dielectric support high-frequency signals with low reflection.

Frequently asked questions

Is BNC7T-J-P-GN-ST-EM2 compatible with 75 ohm coax like RG59?

Match the cable impedance to the connector for a clean signal path.

Does BNC7T-J-P-GN-ST-EM2 come with the lockwasher and nut included?

Yes — the package includes three pieces: one connector, one lockwasher, and one nut. No separate hardware order needed for the panel-mount installation.

Where can I buy BNC7T-J-P-GN-ST-EM2 available via RFQ confirmation?

This part is active and sourced per RFQ.
