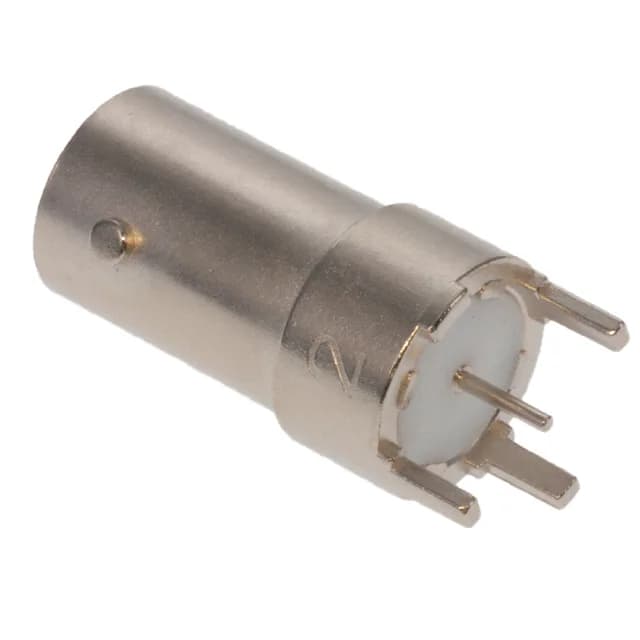

Samtec BNC7T-J-P-GN-ST-TH2D BNC Jack, 75 Ohm, 12 GHz

MPN BNC7T-J-P-GN-ST-TH2D
Active

Samtec TRUE75™ BNC7T series, BNC jack female socket, 75 Ohm, 12 GHz, through hole solder termination, gold plated center contact, nickel brass body, tray pack.

$4.9500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

BNC7T-J-P-GN-ST-TH2D specifications
ParameterValue
SeriesTRUE75™ BNC7T
MountingThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max12 GHz
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialCopper Alloy
PackageTray
Impedance75 Ohms
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The BNC7T-J-P-GN-ST-TH2D: The 75 Ohm impedance makes this a fit for broadcast video, HD-SDI, and other serial digital video paths where 50 Ohm would introduce a mismatch.

Through-Hole Mounting and Solder Termination

This jack mounts through the PCB — the center pin and shield legs go into plated through-holes and get soldered on the opposite side. No press-fit or surface-mount reflow here; it's a straightforward wave-solder or hand-solder part for boards that need a reliable 75 Ohm video input.

The BNC7T-J-P-GN-ST-TH2D uses a gold body finish. The sibling BNC7T-J-P-HN-ST-TH2D swaps that for a nickel body finish — same brass base material, same electrical specs, same 12 GHz and 75 Ohm rating. The choice comes down to the environment: nickel holds up better in outdoor or humid conditions, gold is standard for clean indoor gear. If you need a bulkhead mount instead of PCB mount, the BNC7T-J-P-GN-RA-BH1 gives you the same gold body and electricals but mounts through a panel with a lockwasher and nut.
