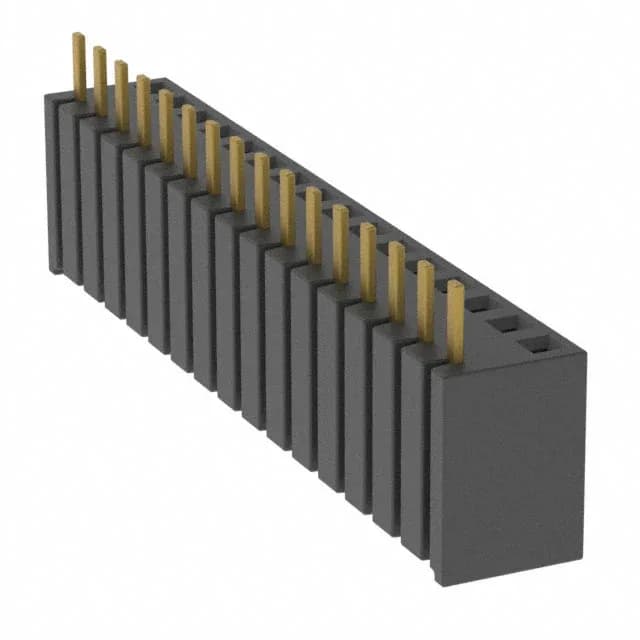

Samtec Inc. BSW-116-04-S-M
MPNBSW-116-04-S-M
Active
CONN RCPT 16POS 0.1 GOLD PCB
$4.9700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBSW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BSW |
| Type | Female Socket |
| Mounting | Through Hole, Bottom Mount |
| Connector type | Receptacle, Breakaway |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polyethylene Terephthalate (PET), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
