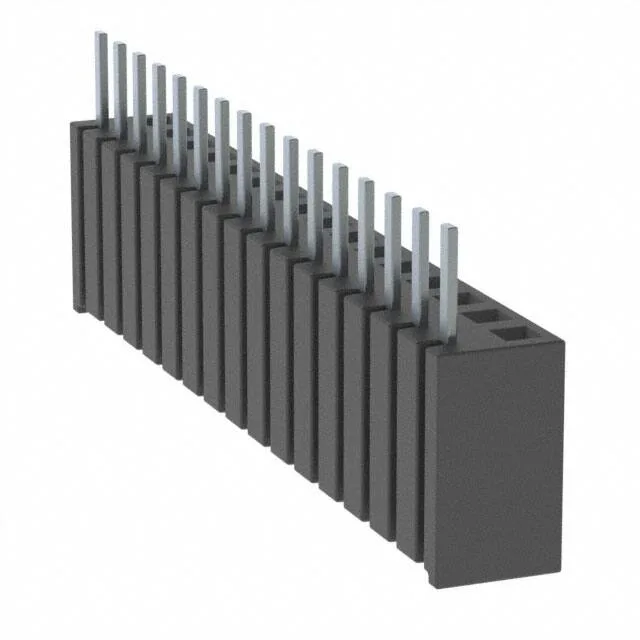

Samtec Inc. BSW-116-04-T-S

Samtec Inc. BSW-116-04-T-S

MPNBSW-116-04-T-S
Active

CONN RCPT 16POS 0.1 TIN PCB

$3.21Ref. price · indicative, final on quote
Samtec Inc. BSW-116-04-T-S datasheet (PDF)
RoHSROHS3 Compliant
SeriesBSW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

BSW-116-04-T-S key specifications
ParameterValue
SeriesBSW
TypeFemale Socket
MountingThrough Hole, Bottom Mount
Connector typeReceptacle, Breakaway
Fastening typePush-Pull
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.350\" (8.89mm)
Insulation materialPolyethylene Terephthalate (PET), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board

All specifications

BSW-116-04-T-S additional specifications
ParameterValue
PackageBulk
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions16
Contact finish - postTin
Contact length - post0.170\" (4.32mm)
Contact finish - matingTin
