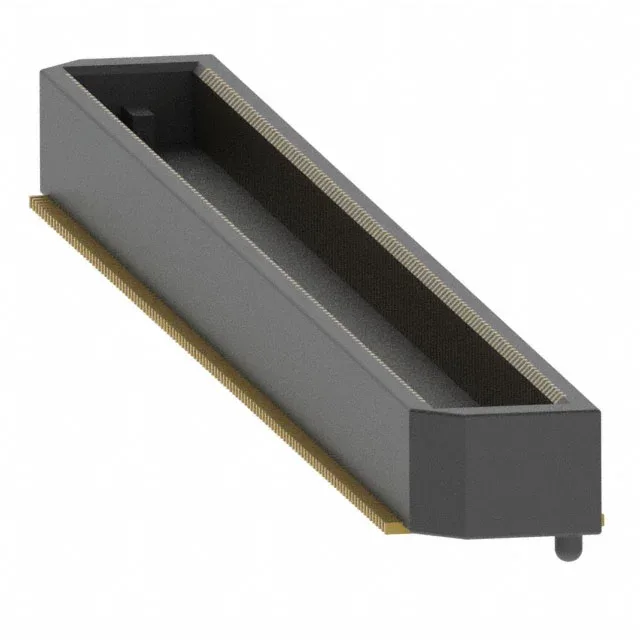

Samtec Inc. BTH-120-01-H-D-A-K-TR
MPNBTH-120-01-H-D-A-K-TR
Active
CONN HDR 240POS SMD GOLD
$20.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBTH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BTH |
| Mounting | Surface Mount |
| Connector type | Header, Outer Shroud Contacts |
| Height above board | 0.168\" (4.27mm) |
| Mated stacking heights | 5mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 240 |
| Contact finish thickness | 30.0µin (0.76µm) |
