Samtec Inc. DW-05-09-T-D-500
MPNDW-05-09-T-D-500
Active

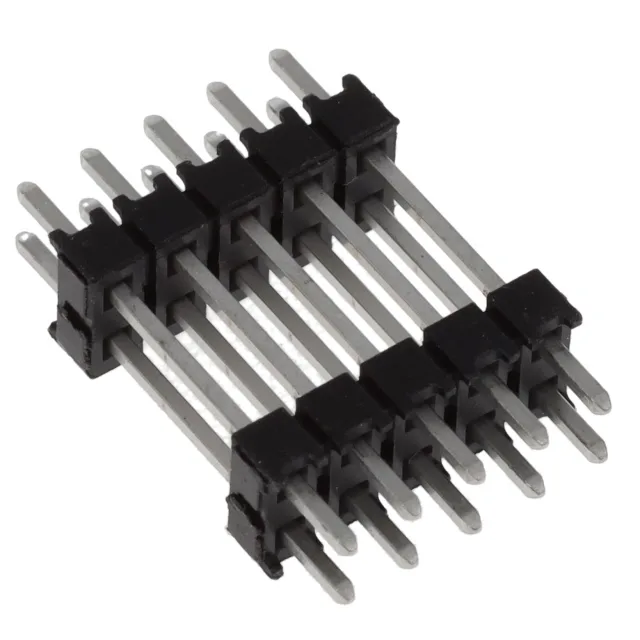

CONN HDR 10POS 0.1 STACK T/H TIN
$1.29Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, DW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, DW |
| Mounting | Through Hole |
| Color | Black |
| Length - stack height | 0.500\" (12.700mm) |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Termination | Solder |
| Length - tail | 0.110\" (2.794mm) |
| Rows | 2 |
| Positions | 10 |
| Length - overall pin | 0.730\" (18.542mm) |
| Length - post (Mating) | 0.120\" (3.048mm) |
| Contact finish - post (Mating) | Tin |
