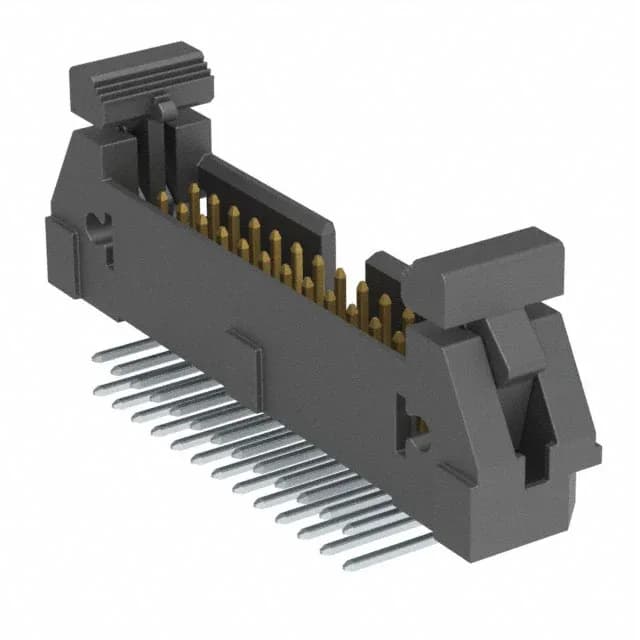

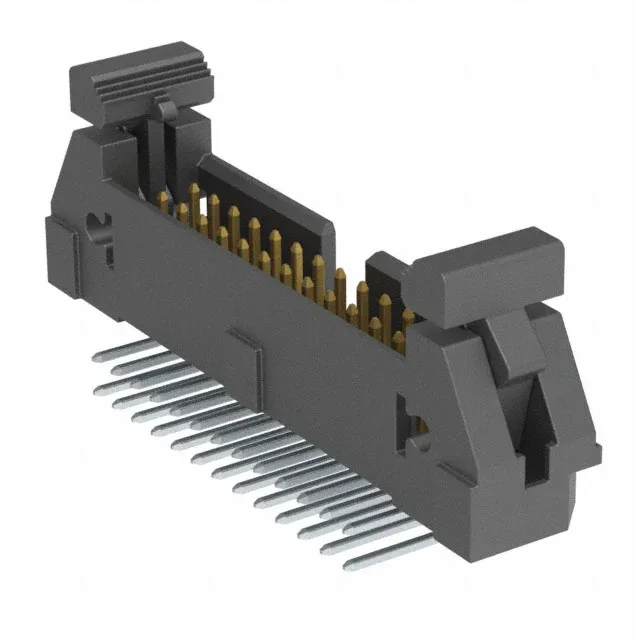

CONN HEADER R/A 26POS 2.54MM
$8.7500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | "EJH" |
| Gender | "Male Pin" |
| Mounting type | "Through Hole, Right Angle" |
| Connector type | "Header" |
| Fastening type | "Latch Lock/Eject Hooks" |
| Voltage rating | "-" |
| Current rating | "3A" |
| Ingress protection | "-" |
| Operating temperature | "-55°C ~ 125°C" |
| Contact material | "Phosphor Bronze" |
| Insulation color | "Black" |
| Insulation height | "0.390\" (9.91mm)" |
| Insulation material | "Liquid Crystal Polymer (LCP)" |
| Mated stacking heights | "-" |
| Material flammability rating | "-" |
| Style | "Board to Cable/Wire" |
| Package | "Tube" |
| Features | "Keying Slot" |
| Shrouding | "Shrouded - 4 Wall" |
| Termination | "Solder" |
| Applications | "-" |
| Contact shape | "Square" |
| Rows | "2" |
| Pitch | "0.100\" (2.54mm)" |
| Positions | "26" |
| Row spacing - mating | "0.100\" (2.54mm)" |
| Contact finish - post | "Tin" |
| Contact length - post | "0.090\" (2.29mm)" |
| Overall contact length | "-" |
| Contact finish - mating | "Gold" |
| Contact length - mating | "0.225\" (5.72mm)" |
| Contact finish thickness - post | "-" |
| Contact finish thickness - mating | "3.00µin (0.076µm)" |
Sourcing this connector
Samtec Inc. EJH-113-01-F-D-RA is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Samtec Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
