Samtec Inc. HDBNC-J-P-GN-RA-BH2 — RF Cable Assemblies

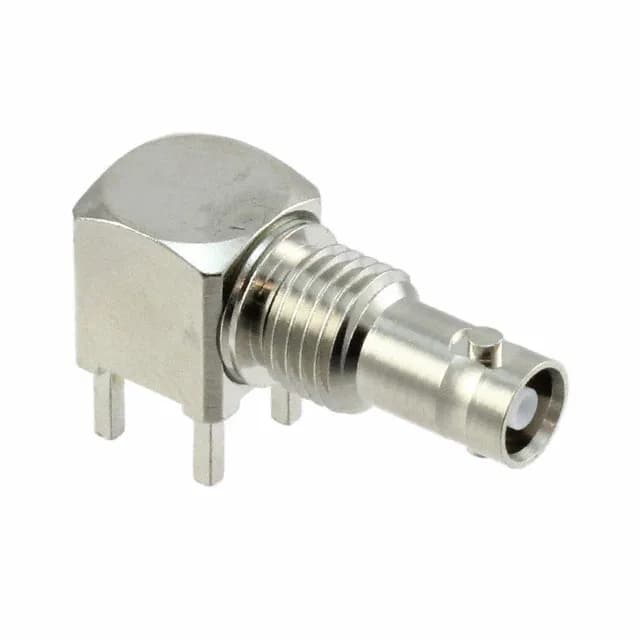

Samtec HDBNC-J-P-GN-RA-BH2, 75 Ohm BNC Jack, 6 GHz, 12G-SDI

MPNHDBNC-J-P-GN-RA-BH2
Active

Samtec TRUE75™ HDBNC, Jack, Female Socket, 75 Ohm, 6 GHz, 500 V, Panel Mount / Through Hole / Right Angle, Solder Termination, Gold Plating, Bulk

$7.9500Ref. price · indicative, final on quote
Samtec Inc. HDBNC-J-P-GN-RA-BH2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HDBNC-J-P-GN-RA-BH2 key specifications
ParameterValue
SeriesTRUE75™ HDBNC
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max6 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper

All specifications

HDBNC-J-P-GN-RA-BH2 additional specifications
ParameterValue
PackageBulk
Features12G-SDI
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance75 Ohms
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm BNC Jack, 6 GHz Ceiling — Built for 12G-SDI Broadcast Video

The HDBNC-J-P-GN-RA-BH2: The right-angle through-hole body mounts flush to the board edge, and the bulkhead front-side nut locks it into the panel so cable strain pulls against the chassis, not the solder joints.

Right-Angle Through-Hole with Bulkhead Mount — Board and Panel Fit

The through-hole solder tails anchor the signal path, and the bulkhead front-side nut clamps the flange to the panel — the lockwasher included in the 3-piece kit (connector, lockwasher, nut) prevents the nut backing off under vibration. The nickel-plated brass body gives the shell a corrosion-resistant ground path; the silver housing colour is the bare nickel finish, not a coating.

Frequently asked questions

What is the impedance and frequency rating of HDBNC-J-P-GN-RA-BH2?

75 Ohm impedance with a 6 GHz maximum frequency rating, supporting 12G-SDI serial digital video.

What is the difference between HDBNC-J-P-GN-RA-BH2 and HDBNC-J-P-GN-RA-BH1?

Both are right-angle 75 Ohm BNC jacks with the same 6 GHz rating, gold-plated centre contact, and nickel-plated brass body. The BH1 is a functional cross-reference — verify the BOM line before substituting.

Does HDBNC-J-P-GN-RA-BH2 include mounting hardware?

Yes — the package includes 3 pieces: the connector, one lockwasher, and one nut for the bulkhead front-side mount.

Where can I buy HDBNC-J-P-GN-RA-BH2?

Availability and pricing confirmed at quote time.
