Samtec Inc. HDMR-19-01-S-SM-TR — USB / HDMI Cable Assemblies

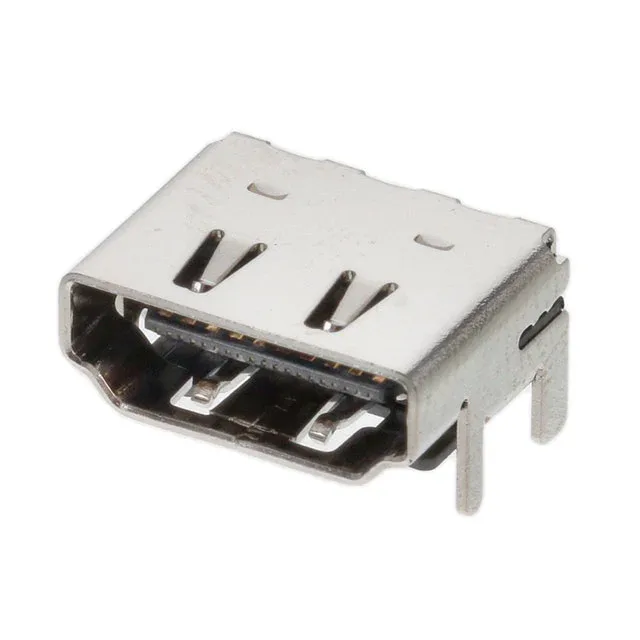

Samtec HDMR-19-01-S-SM-TR HDMI Receptacle, 19-Pos SMD R/A

MPNHDMR-19-01-S-SM-TR
Active

Samtec HDMR-19 HDMI receptacle, order code HDMR-19-01-S-SM-TR, 19 positions, single port, 1.3 A per contact, 40VAC, gold-plated contacts, surface-mount right-angle, solder termination, unshielded.

$5.57Ref. price · indicative, final on quote
Samtec Inc. HDMR-19-01-S-SM-TR datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

HDMR-19-01-S-SM-TR specifications
ParameterValue
MountingSurface Mount, Right Angle; Through Hole
Connector typeHDMI
Voltage - rated40VAC
Current rating1.3A per Contact
Positions19
Mounting featureHorizontal
Operating temperature-25°C ~ 85°C
Shell (Shielding material)Brass
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingUnshielded
TerminationSolder
Mating cycles100
Contact finishGold
Number of ports1

Product details

HDMI receptacle, 19 positions, 1.3 A per contact

The HDMR-19-01-S-SM-TR is the 19-position, unshielded member of Samtec's HDMR-19 HDMI receptacle line, configured as a single-port surface-mount right-angle connector with a board guide feature.

Position count and shielding across the HDMR-19 series

Within the HDMR-19 series the HDMR-19-01-S-SM-TR shares its 19-position count and 1.3 A per contact rating with the shielded HDMR-19-01-S-SM (tray packaging) and the shielded HDMR-19-01-F-SM-TR (gold-flash plating, Tape & Reel) — the board guide and horizontal mounting are common across the series, so the primary selection axis is shielding requirement and plating grade.

Frequently asked questions

What is the difference between HDMR-19-01-S-SM-TR and HDMR-19-01-S-SM?

The HDMR-19-01-S-SM-TR is unshielded and supplied in Tape & Reel packaging; the HDMR-19-01-S-SM is shielded and supplied in a tray. Both share the same 19-position HDMI receptacle design, 1.3 A per contact rating, and gold-plated contacts.
