Samtec Inc. HDMR-19-02-S-SM — USB / HDMI Cable Assemblies

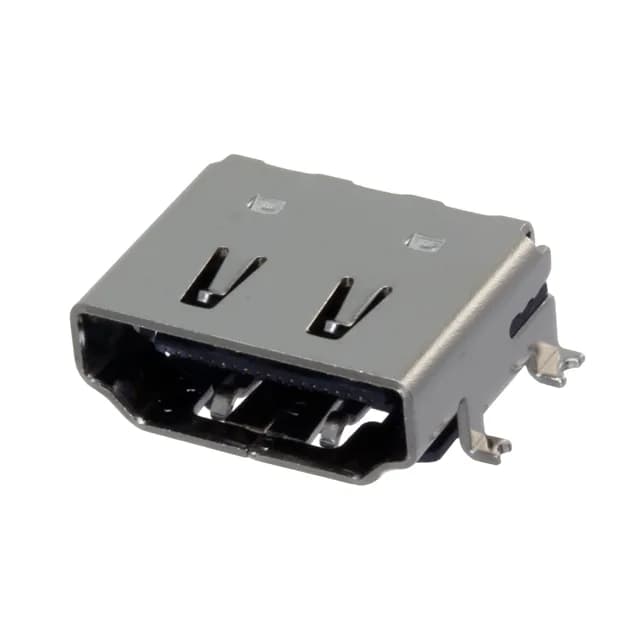

Samtec HDMR-19-02-S-SM HDMI Receptacle, 19-Pos, SMT R/A

MPNHDMR-19-02-S-SM
Active

Samtec HDMR series HDMI receptacle, order code HDMR-19-02-S-SM, 19 contacts, single port, 1.3 A per contact, 40 VAC, gold-plated contacts, shielded brass shell, surface-mount right-angle, solder termination.

$7.0300Ref. price · indicative, final on quote
Samtec Inc. HDMR-19-02-S-SM datasheet (PDF)
RoHSROHS3 Compliant
SeriesHDMR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

HDMR-19-02-S-SM specifications
ParameterValue
SeriesHDMR
MountingSurface Mount, Right Angle; Through Hole
Connector typeHDMI
Voltage - rated40VAC
Current rating1.3A per Contact
Positions19
Mounting featureHorizontal
Operating temperature-25°C ~ 85°C
Shell (Shielding material)Brass
GenderReceptacle
PackageTray
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles100
Contact finishGold
Number of ports1

Product details

HDMI receptacle with board guide

The HDMR-19-02-S-SM is the 19-contact receptacle in Samtec's HDMR HDMI series, shielded and terminated by solder to a surface-mount right-angle footprint.

Position count across the HDMR series

The HDMR series offers the same 19-contact HDMI receptacle in several packaging and mounting variants: the HDMR-19-02-S-SM-TR ships on Tape & Reel, the HDMR-19-02-F-SM uses a different contact finish, and the HDMR-19-01-S-SM-PF adds a flange for horizontal mounting — all share the same 1.3 A rating, 40 VAC voltage, and 100-cycle mating durability.

Frequently asked questions

What is the gender of HDMR-19-02-S-SM?

It is a receptacle (female) HDMI connector.

Will HDMR-19-02-S-SM drop into a panel that was specified around HDMR-19-02-S-SM-TR without rewiring?

Yes — both parts share the same 19-contact HDMI receptacle design, ratings, and footprint; the only difference is packaging (Tray vs Tape & Reel).
