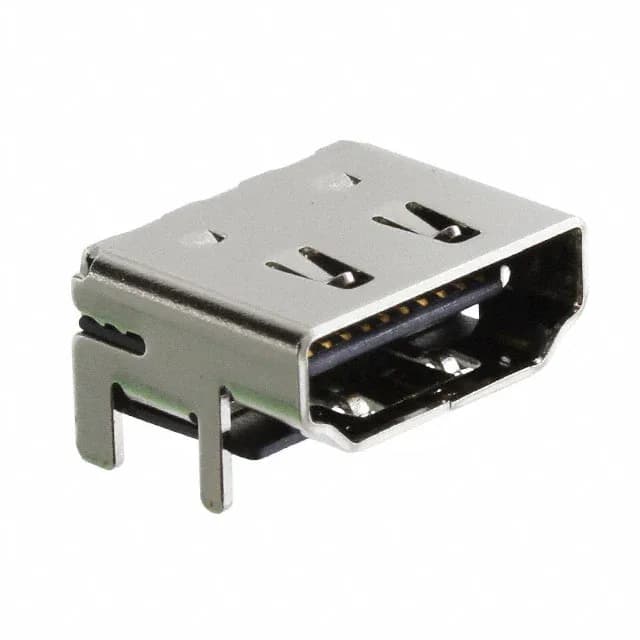

HDMI receptacle, 19-position, right-angle SMT
The HDMR-19-02-S-SM-TR is the 19-contact member of Samtec's HDMR HDMI receptacle line, a shielded single-port connector with gold-plated contacts. Rated 1.3 A per contact at 40 VAC, it mounts horizontally via surface-mount right-angle solder tails and includes a board guide for alignment during assembly.
Tape & Reel packaging for automated placement
Supplied on Tape & Reel (TR) with Cut Tape (CT) option, the HDMR-19-02-S-SM-TR feeds directly into pick-and-place lines — no tray handling required.
Position count across the HDMR series
All HDMR-19 variants share the 19-contact count, 40 VAC rating, 1.3 A per contact, gold finish, and shielded construction. The HDMR-19-02-S-SM-TR differs from the HDMR-19-01-F-SM-TR and HDMR-19-02-F-SM in contact plating grade (S vs F) and packaging — the S denotes gold flash, the F denotes full gold. The board footprint and mating interface are identical across the series.
