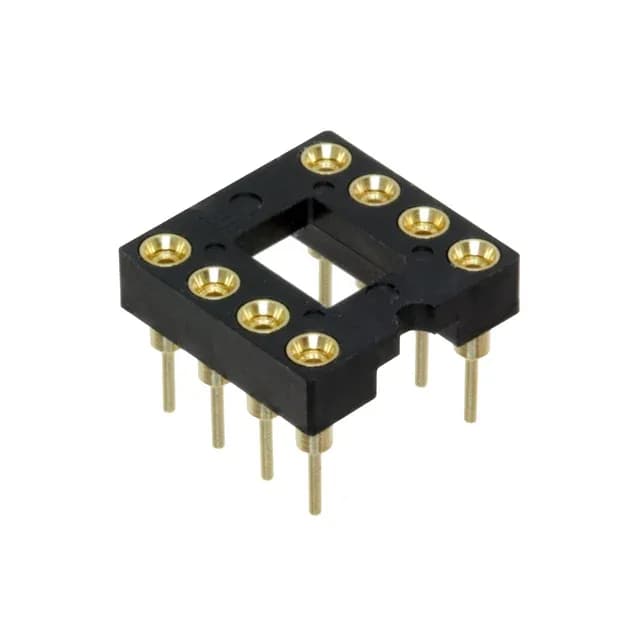

Samtec ICA series DIP socket, order code ICA-308-SGG, 8 positions (2 x 4), 0.100" (2.54mm) pitch, 1 A, gold mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | ICA |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 8 (2 x 4) |
Within the ICA-308 base product number, the ICA-308-SGG carries gold-on-gold contacts (30.0µin gold mating, 30.0µin gold post). The ICA-308-SGT uses gold mating contacts with tin post plating, while the ICA-308-SST and ICA-308-STT use tin post and tin mating contacts respectively — the gold-on-gold option provides the highest corrosion resistance and mating cycle endurance for repeated insertion and removal.
Both sockets share the same 8-position DIP layout, 0.100" pitch, and 1 A rating. The ICA-308-SGG uses gold plating on both the mating contact and the post (30.0µin each), while the ICA-308-SGT uses gold on the mating contact and tin on the post. The ICA-308-SGG is the preferred choice when the post must also resist corrosion or when the socket is soldered into a corrosive environment.
