Samtec Inc. ICA-308-SGT — IC & Device Sockets

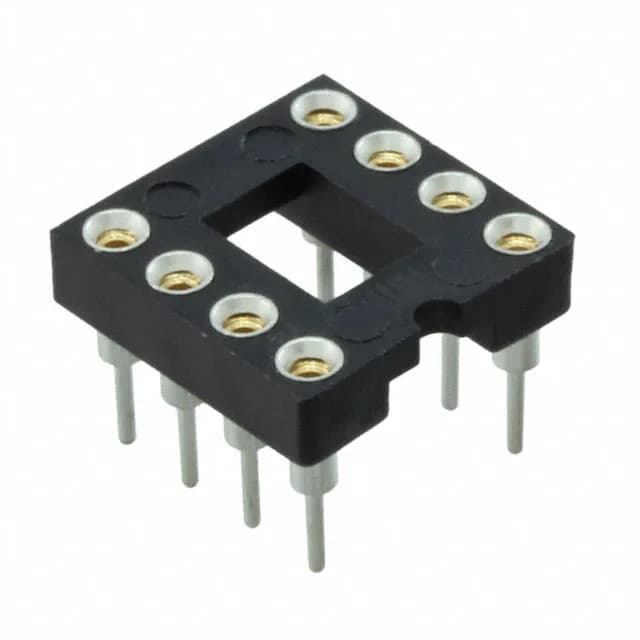

Samtec ICA-308-SGT DIP Socket, 8-Pos, 0.100" Pitch

MPNICA-308-SGT
Active

Samtec ICA series DIP socket, order code ICA-308-SGT, 8 positions (2 x 4), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, 1 A, gold-plated beryllium copper mating contacts, through-hole solder termination.

$2.6800Ref. price · indicative, final on quote
Samtec Inc. ICA-308-SGT datasheet (PDF)
RoHSROHS3 Compliant
SeriesICA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

ICA-308-SGT key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
SeriesICA
MountingThrough Hole
Current rating1 A
Operating temperature-55°C ~ 125°C
Housing materialPolyester, Glass Filled
Contact material - postBrass
Contact material - matingBeryllium Copper
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

ICA-308-SGT additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance10mOhm
Contact finish - postTin
Contact finish - matingGold
Termination post length0.125\" (3.18mm)
Contact finish thickness - post10.0µin (0.25µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins8 (2 x 4)

Product details

8-position ICA DIP socket

The ICA-308-SGT is the 8-position (2 x 4 grid) member of Samtec's ICA open-frame DIP socket line, designed for 0.3" (7.62mm) row-spacing ICs.

Plating variants across the ICA-308 family

Within the ICA-308 family all four variants share the same 8-position 0.100" pitch open-frame body, UL94 V-0 polyester housing, and 0.125" (3.18mm) termination post length — the difference is contact plating. The ICA-308-SGT carries gold mating / tin post (30.0µin / 10.0µin). The ICA-308-SGG is gold/gold (30.0µin / 30.0µin). The ICA-308-STT is tin/tin throughout.

Frequently asked questions

Will ICA-308-SGT drop into a board specified around ICA-308-SGG without rewiring?

The only difference is the post finish: tin on the SGT, gold on the SGG. Form, fit, and function are identical for the board layout.
