Tin vs gold mating finish across the ICA series
The ICA-308-STT: The 18-position ICA-318-STT shares the same tin finish, 0.100" pitch, and through-hole solder termination, differing only in position count.

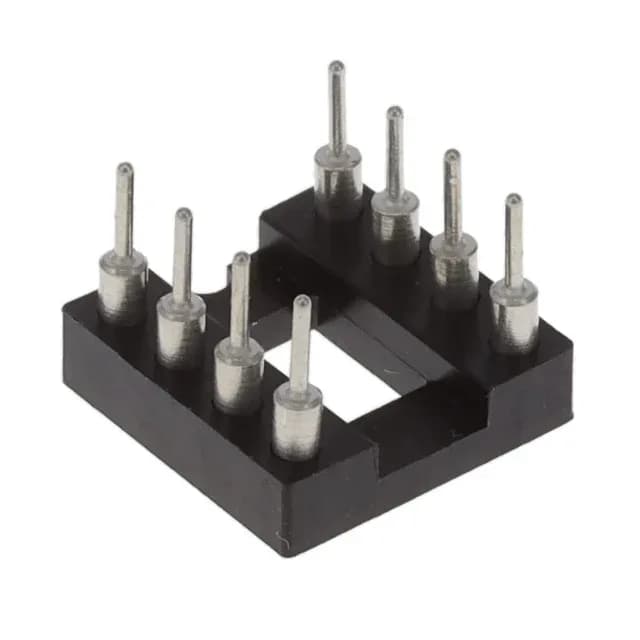

Samtec ICA-308-STT DIP Socket 8 Pos Tin
MPNICA-308-STT
Active
Samtec ICA series DIP socket, order code ICA-308-STT, 8 positions (2 x 4), 0.100" (2.54mm) pitch, 1 A, tin-plated mating contacts, through-hole, solder termination.
$1.2000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesICA
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | ICA |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.125\" (3.18mm) |
| Number of positions or pins | 8 (2 x 4) |
Product details
Frequently asked questions
What is the closest functional second-source to the ICA-308-STT?
The ICA-308-SST is the same 8-position DIP socket with gold-plated mating contacts (10.0µin) instead of tin; the footprint, pitch, and termination are identical.
What compliance documentation does Samtec provide for the ICA-308-STT?
The ICA-308-STT is ROHS3 Compliant per Samtec's lifecycle record.
