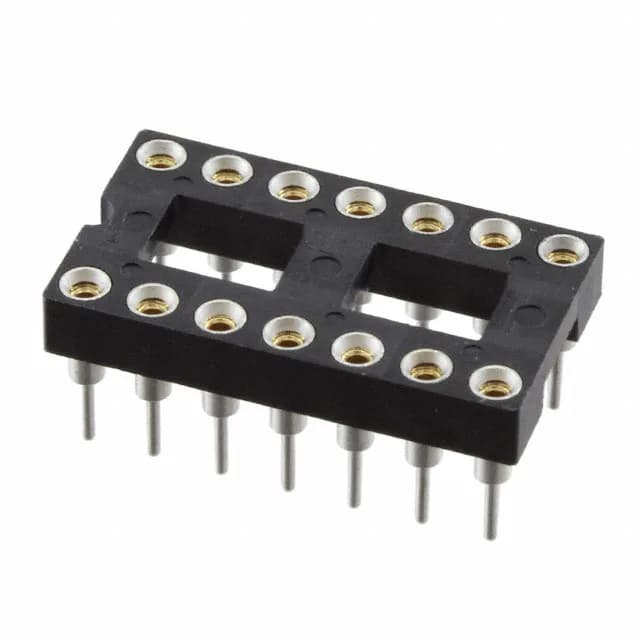

Samtec ICA series DIP socket, order code ICA-314-SST, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, 1 A, gold-plated mating contacts, through-hole solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | ICA |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
| Number of positions or pins | 14 (2 x 7) |
The ICA-314-SST is the 14-circuit member of Samtec's ICA open-frame DIP socket line, arranged 2 x 7 on 0.100" pitch with a 0.3" row spacing. Gold-over-beryllium copper mating contacts rated 1 A per pin, housed in a UL94 V-0 glass-filled polyester body, through-hole solder termination.
The 14-position socket fits the same drill pattern as the 24-position version; unused positions simply remain unpopulated.
The ICA-314-SST is RoHS3 compliant (RoHS3 Compliant).
