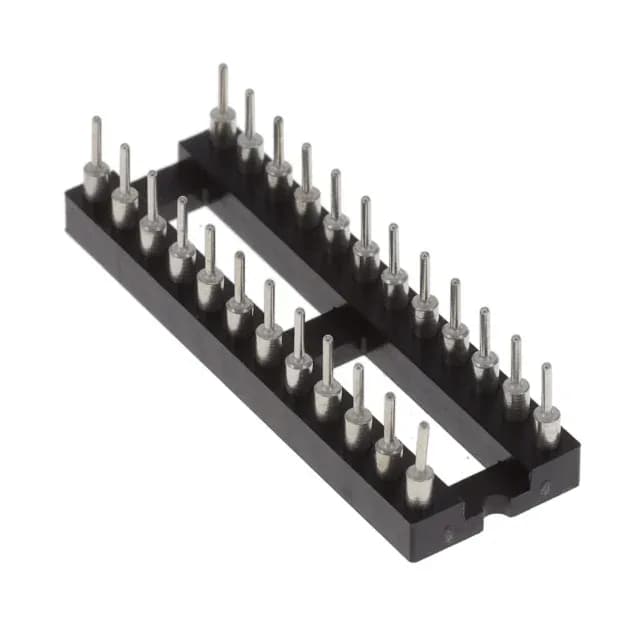

Samtec ICA series DIP socket, order code ICA-324-STT, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 1 A, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | ICA |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.125\" (3.18mm) |
| Number of positions or pins | 24 (2 x 12) |
The ICA-324-STT is the 24-circuit member of Samtec's ICA open-frame DIP socket line, arranged as 2 rows of 12 on 0.300" (7.62mm) row spacing.
Within the ICA series the 24-position ICA-324-STT sits between the 18-position ICA-318-STT and the 8-position ICA-308-STT — all share the same 0.100" pitch, 0.300" row spacing, open-frame construction, and UL94 V-0 glass-filled polyester housing.
Yes — the ICA-324-SST shares the same 24-position, 0.100" pitch, 0.300" row spacing, and through-hole footprint. The only difference is the mating contact finish: the SST uses 10.0µin (0.25µm) gold, while the STT uses tin.
