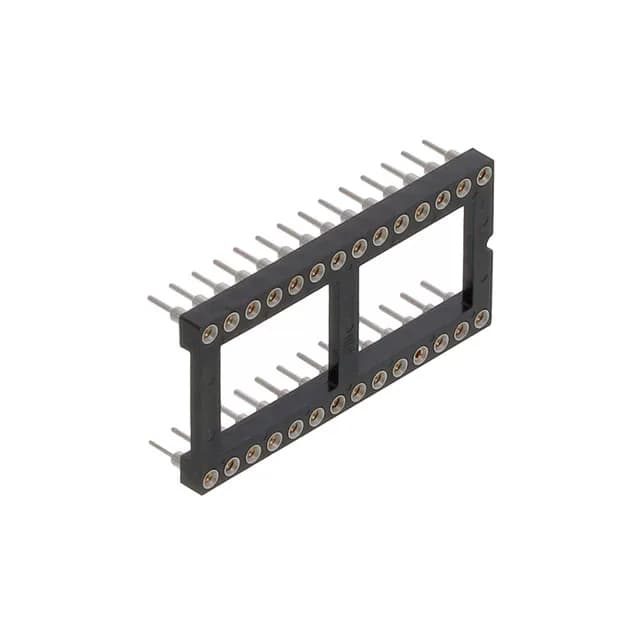

Samtec ICA series DIP socket, order code ICA-628-SST, 28 positions (2 x 14), 0.100" (2.54mm) pitch, 1 A, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | ICA |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
| Number of positions or pins | 28 (2 x 14) |
The ICA-628-SST is a 28-position (2 x 14) DIP socket from Samtec's ICA series, designed for through-hole soldering into a 0.600" (15.24 mm) row-spacing pattern. Mating contacts are beryllium copper with 10.0 µin (0.25 µm) gold plating, rated for 1 A per contact over a -55°C to 125°C operating range.
