Samtec Inc. ICA-632-STT — IC & Device Sockets

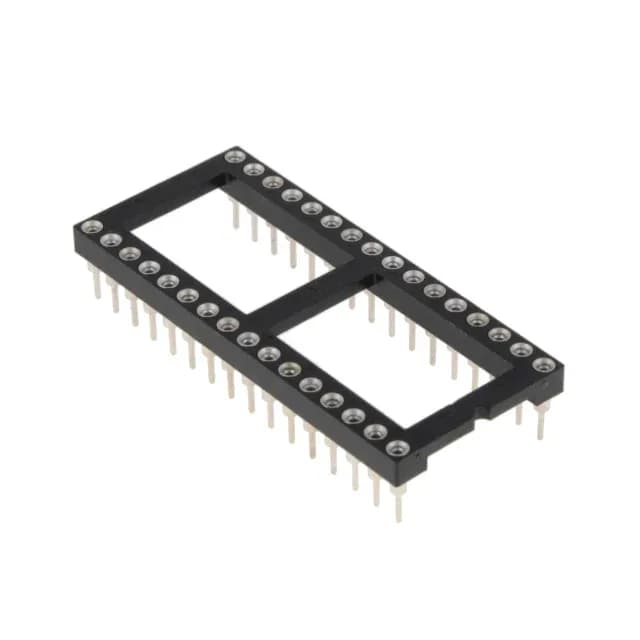

Samtec ICA-632-STT DIP Socket, 32-Pos, 0.100" Pitch

MPNICA-632-STT
Active

Samtec ICA series DIP socket, order code ICA-632-STT, 32 positions (2 x 16), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, 1 A, tin-plated mating contacts, through-hole, solder termination.

$4.2700Ref. price · indicative, final on quote
Samtec Inc. ICA-632-STT datasheet (PDF)
RoHSROHS3 Compliant
SeriesICA
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ICA-632-STT key specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
SeriesICA
MountingThrough Hole
Current rating1 A
Operating temperature-55°C ~ 105°C
Housing materialPolyester, Glass Filled
Contact material - postBrass
Contact material - matingBeryllium Copper
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

ICA-632-STT additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance10mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.125\" (3.18mm)
Number of positions or pins32 (2 x 16)

Product details

32-pin DIP socket, 0.6" row spacing

The ICA-632-STT is the 32-position member of Samtec's ICA open-frame DIP socket line, arranged in a 2 x 16 grid on 0.6" (15.24mm) row spacing. Mating contacts are tin-plated beryllium copper rated 1 A, with brass post contacts and a UL94 V-0 glass-filled polyester housing.

Position count across the ICA series

The ICA-632-SST shares the same 32-position layout and tin post contacts but uses gold-plated mating contacts with 10.0µin (0.25µm) thickness, compared to the ICA-632-STT's tin mating finish.

Frequently asked questions

What is the difference between ICA-632-STT and ICA-632-SST?

The ICA-632-SST uses gold-plated mating contacts (10.0µin); the ICA-632-STT uses tin-plated mating contacts.

What compliance documentation does Samtec provide for the ICA-632-STT?

The ICA-632-STT is ROHS3 Compliant.
