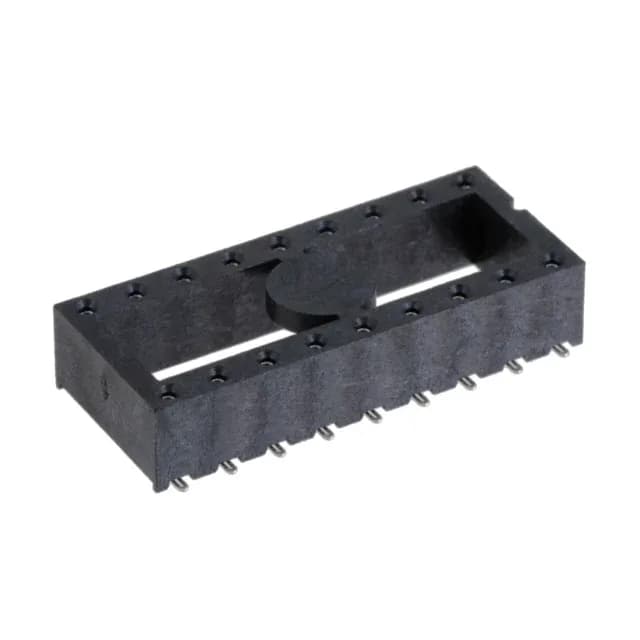

Samtec ICF series DIP socket, order code ICF-318-T-O, 18 positions (2 x 9), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, tin-plated beryllium copper contacts, surface-mount, solder termination, open-frame LCP housing.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | ICF |
| Mounting | Surface Mount |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Liquid Crystal Polymer (LCP) |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Number of positions or pins | 18 (2 x 9) |
The ICF-318-T-O is the 18-circuit member of Samtec's ICF open-frame DIP socket line, arranged as 2 rows of 9 on 0.3" (7.62mm) row spacing. Termination is solder, surface-mount.
An 8-position sibling, the ICF-308-T-I-TR, is also available for lower circuit counts.
The difference is position count: 18 vs 16.
