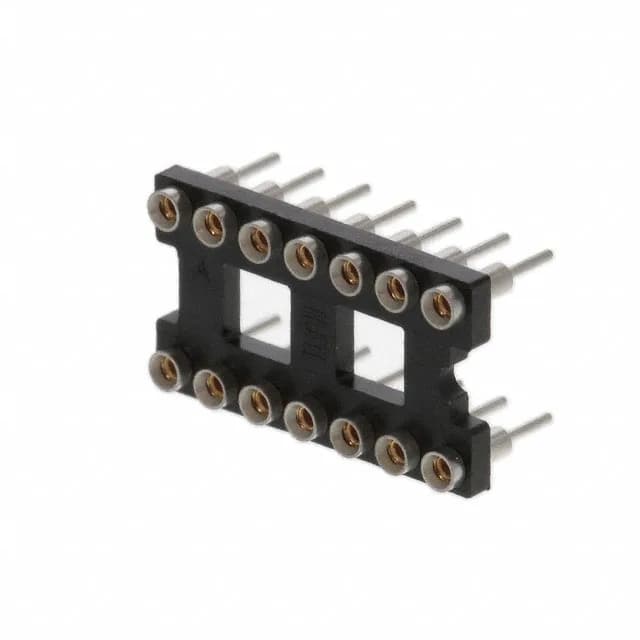

Samtec ICO series DIP socket, order code ICO-314-SGT, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 1 A, gold-plated beryllium copper mating contacts, through-hole solder termination, open-frame polyester housing.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | ICO |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 14 (2 x 7) |
The ICO-314-SGT is a 14-position DIP socket from Samtec's ICO series, arranged in a 2 x 7 grid on 0.300" (7.62mm) row spacing. Mating contacts are gold-plated beryllium copper rated 1 A per contact; the housing is glass-filled polyester rated UL94 V-0.
