Samtec Inc. ICO-628-SGT — IC & Device Sockets

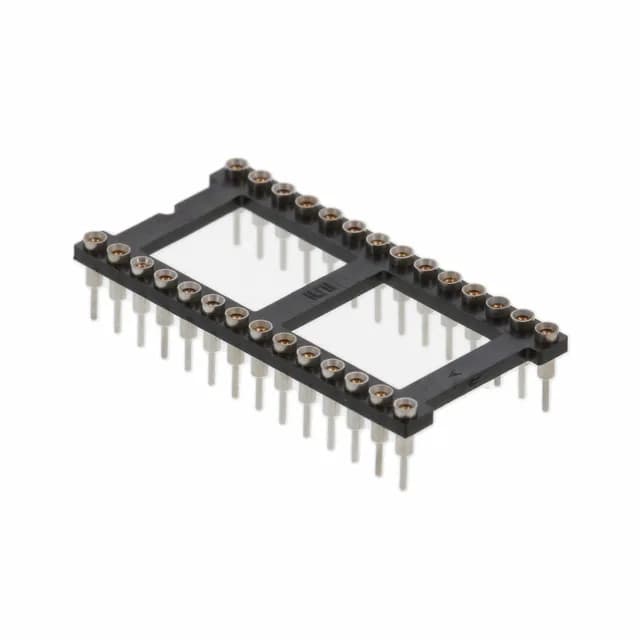

Samtec ICO-628-SGT DIP Socket, 28-Pos, 0.100" Pitch

MPNICO-628-SGT
Active

Samtec ICO series DIP socket, order code ICO-628-SGT, 28 positions (2 x 14), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, 1 A, gold-plated beryllium copper mating contacts, through-hole, solder termination.

$4.0600Ref. price · indicative, final on quote
Samtec Inc. ICO-628-SGT datasheet (PDF)
RoHSROHS3 Compliant
SeriesICO
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ICO-628-SGT key specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
SeriesICO
MountingThrough Hole
Current rating1 A
Operating temperature-55°C ~ 125°C
Housing materialPolyester, Glass Filled
Contact material - postBrass
Contact material - matingBeryllium Copper
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

ICO-628-SGT additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance10mOhm
Contact finish - postTin
Contact finish - matingGold
Termination post length0.125\" (3.18mm)
Contact finish thickness - post10.0µin (0.25µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins28 (2 x 14)

Product details

Open-frame DIP socket for 28-pin ICs

The ICO-628-SGT: Gold-plated beryllium copper mating contacts rated 1 A, housed in a UL94 V-0 glass-filled polyester body rated -55°C to 125°C.

Position count across the ICO series

Within the ICO series the 28-position ICO-628-SGT sits above the 16-position ICO-316-SGT and the 14-position ICO-314-SGT — all share the same 0.100" pitch, 0.125" termination post length, gold mating contacts, and open-frame construction, so the selection axis is the pin count matching the target IC.

Frequently asked questions

How does ICO-628-SGT compare to the ICO-316-SGT?

The ICO-628-SGT has 28 positions (2 x 14) with 0.6" row spacing, while the ICO-316-SGT has 16 positions (2 x 8) with 0.3" row spacing. Both use the same 0.100" pitch, gold mating contacts, and through-hole termination — the row spacing and pin count are the deciding factors for the target IC footprint.
