Samtec Inc. MCX-J-C-H-ST-CA1 — RF Cable Assemblies

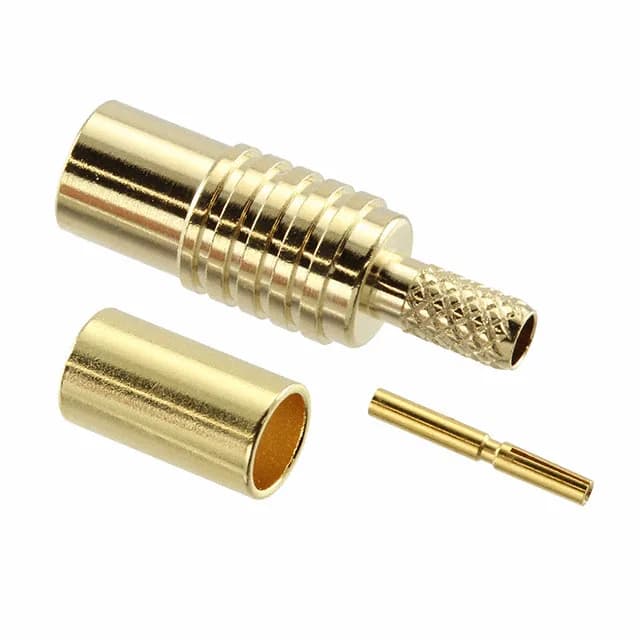

MCX-J-C-H-ST-CA1 MCX Jack, 50 Ohm, RG-174/316, Solder Crimp

MPNMCX-J-C-H-ST-CA1
Active

Samtec MCX series jack, female socket, 50 Ohms, free-hanging, snap-on, solder contact, crimp shield, gold body, for RG-174/316 cable, includes connector, contact, ferrule.

$5.8300Ref. price · indicative, final on quote
Samtec Inc. MCX-J-C-H-ST-CA1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MCX-J-C-H-ST-CA1 specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeSnap-On
Cable groupRG-174, 316
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialCopper Alloy
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishGold
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

MCX-J-C-H-ST-CA1 — 50 Ohm MCX Jack for RG-174 and RG-316

The Samtec MCX-J-C-H-ST-CA1 is a 50 Ohm MCX jack, female socket, designed for free-hanging, in-line termination to RG-174 and RG-316 coaxial cables. The snap-on fastening provides quick, secure mating typical of the MCX interface, while the gold-plated brass body and gold center contact maintain signal integrity across the connection.

This jack is built for RG-174 and RG-316 cable — two common small-diameter coax types used in RF modules, antenna pigtails, and test leads. The PTFE dielectric material in the connector matches the cable's PTFE jacket, keeping the 50 Ohm impedance consistent through the termination.

Operating Range and Environment

The gold-over-copper-alloy center contact resists corrosion through repeated matings, and the snap-on coupling holds against moderate vibration without a threaded lock ring.

Frequently asked questions

Where can I buy MCX-J-C-H-ST-CA1?

Submit a request for current pricing and availability.

What cable is compatible with MCX-J-C-H-ST-CA1?

This connector is designed for RG-174 and RG-316 coaxial cables. The center contact solders to the signal conductor, and the shield crimps with the included ferrule.
